Product Description

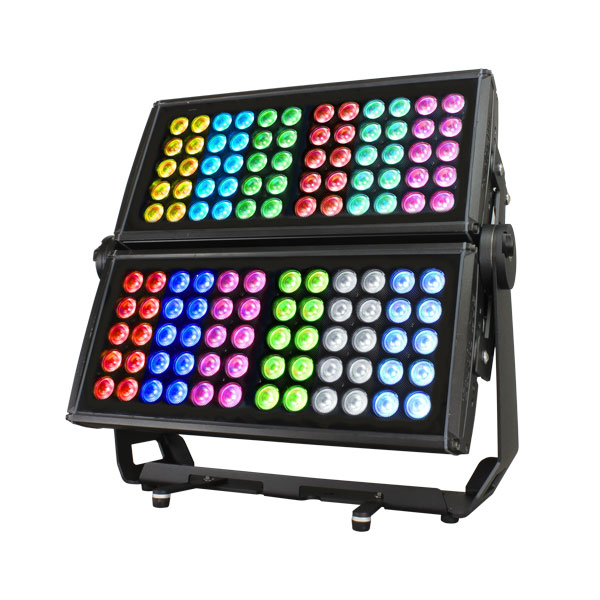

R12. RGBW (with 4000K white LED) wash/flood light twin headed fixture with 12 independent segment control 10 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. RDM/DRS. Touch control panel. CitycoloR12 RGBW has IP65 protection rating.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
120
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
97000
|
Red lumen (lm)
|
24000
|
Green lumen (lm)
|
33000
|
Blu lumen (lm)
|
7100
|
White lumen (lm)
|
44000
|
Colour temperature range (K)
|
2000 - 10000
|
| Optics | |
Lenses (upper head)
|
8°
10°x50°
15°
15°x30°
25°
40°
60°
|
Lenses (lower head)
|
8°
10°x50°
15°
15°x30°
25°
40°
60°
|
Filters upper head (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 60° x 1° (1° = native lens) vertical
|
Filters lower head (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 60° x 1° (1° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin IP65 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
Dedicated DMX channel for macro
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS + touch control panel
|
DMX channels
|
54ch - 48ch - 9ch - 4ch
|
| Power supply | |
Input range
|
180 - 305 VAC; 47/63 Hz
|
Power max (W)
|
1200
|
Current
|
5,2A@230VAC
|
Power Factor
|
PF>0,95@230VAC
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
190°
|
IP protection rating
|
65
|
IK grade protection
|
07
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
680 x 170 x 595
|
Weight (Kgs)
|
30
|
| Optional/Accessories | |
A - Flight case CCLED CASEx2
|
None
Yes
|
LED 6000K White
|
None
Yes
|
| Uncategorized | |
563-BD (art.900104)
|
No
Yes
|
563-AG (art.900004)
|
No
Yes
|
563LED-FROST (art.900411)
|
No
Yes
|
CLAMP/C (art.900516)
|
No
Yes
|
FFB (art.900517)
|
No
Yes
|
SAFETY WIRE/C (art.900523)
|
No
Yes
|
