Product Description

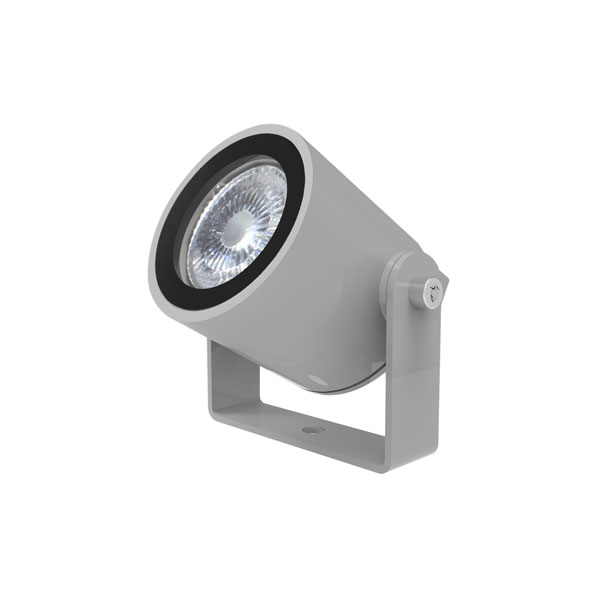

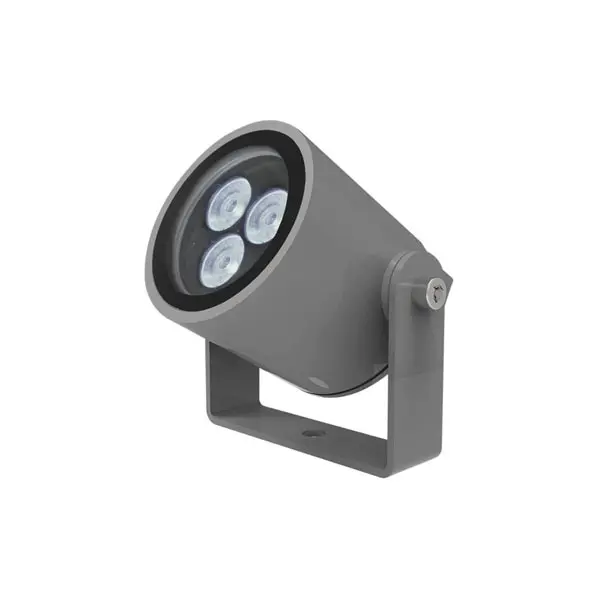

Small IP67 professional 230V Monochromatic LED spotlight with on-board power supply (POB), born to create decorative effects and architectural installations. Version with hybrid cable and IN/OUT connectors.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6000K
|
Number of LEDs
|
1
|
LED expected lifetime (hrs)
|
50000
|
Lumen MAX
|
500
|
CRI
|
>70 (on request >80, >90)
|
| Optics | |
Lenses
|
10°
15°
25°
40°
60°
|
Filters
|
None
f 100°
|
| Connections | |
Connectors and cables
|
Power cable 3x0.75mm 1,5mt
DMX signal IN/OUT 3pins IP67 connectors
|
| Control | |
Control type
|
DMX - RDM
|
| Functions and Setup | |
Functions
|
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
3ch - 1ch
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power (W)
|
5
|
Current
|
0,25A@230VAC
|
Inrush current
|
40A@230V
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
270°
|
IP protection rating
|
67
|
IK grade protection
|
08
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
112x70x70
|
Weight (Kgs)
|
0.8
|
Mounting systems
|
Surface
|
