Product Description

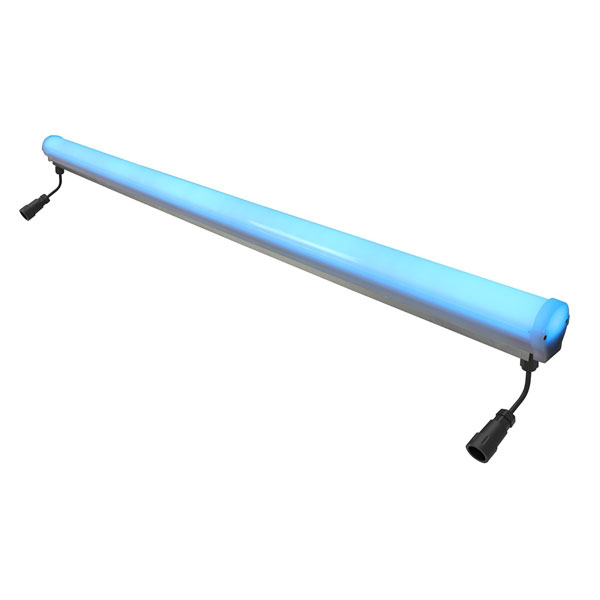

LED LINEAR TUBE RGBW di piccolissime dimensioni con grado di protezione IP 67 50cm long. Adatto ad illuminazione architetturale per creare effetti visivi e giochi di luce. Standard 100cm. Struttura dissipante in alluminio e tubo in PMMA. Per controllare il COLORFLOW RGBW utilizzare un Power Supply esterno 48VDC. A richiesta: staffa per regolazione -/+ 78°


Downloads
Technical specification
LED type
RGBW
Number of LEDs
44
Red lumen (lm)
380
Green lumen (lm)
440
Blu lumen (lm)
160
White lumen (lm)
560
Lenses
180°
Control type
DMX - RDM
Setup
RDM/DRS
DMX channels
9ch - 5ch - 4ch
Input range
48VDC
Power (W)
30
Current
650mA@48VDC
IP protection rating
67
Sizes l x p x h (mm)
1510 x 46
Weight (Kgs)
1,4
Mounting systems
Surface
Colour finishing
None
Marine Grade treatment
None
