Product Description

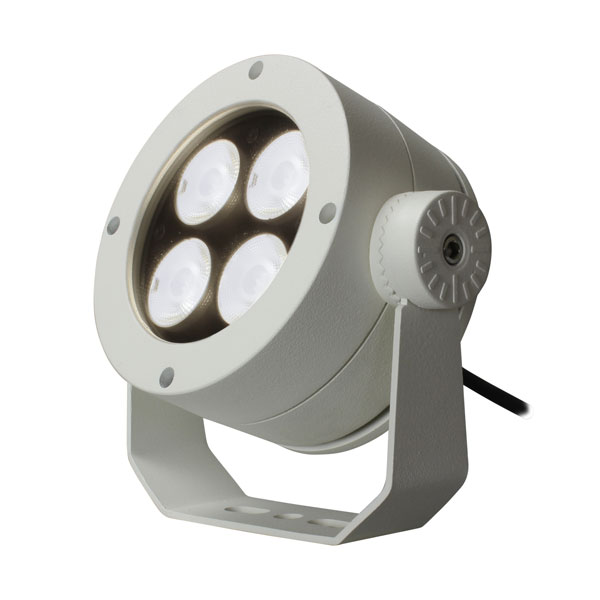

 Small wash LED spot with 4 High Power Monochromatic LEDs. Remote configuration by DRSW Setup device. IP 67 protection rating.



Downloads

UM_CLEVER SPOT_low.pdf
Technical specification
LED type
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
Number of LEDs
4 White 4000K LEDs 3535 1.8A max
LED expected lifetime (hrs)
50000
Lumen MAX
1800
Lenses
10°x30°
15°
25°
40°
60°
Filters (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 1° x 60° (1° = native lens) vertical
Connectors and cables
Main Power: cable 3x0,75mm
DMX signal: cable 0,6mt + 3pin IP67 M14 connector (male-female)
Control type
DMX - RDM
Functions
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
Flicker-free function
DMX channels
3ch - 1ch
Input range
100 - 277 VAC; 47/63 Hz
Power (W)
13
Current
60mA@230VAC
Inrush current
45A@230V
Materials
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
Mounting systems
Surface
Truss (optional)
Colour finishing
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
Marine Grade treatment
None
Yes
Tilt
360°
IP protection rating
67
IK grade protection
07
Operating temperature
-30°C +45°C
Sizes l x p x h (mm)
165 x 70 x 160
Weight (Kgs)
1,1
Accessories - Snoot
None
Yes
