  3. ARIA WL5 24V WB (it.215460)
GBP Pricelist
Print Datasheet
Product Datasheet
Product Configurator
Compare
Request Information
Wishlist
Downloads
Product Description

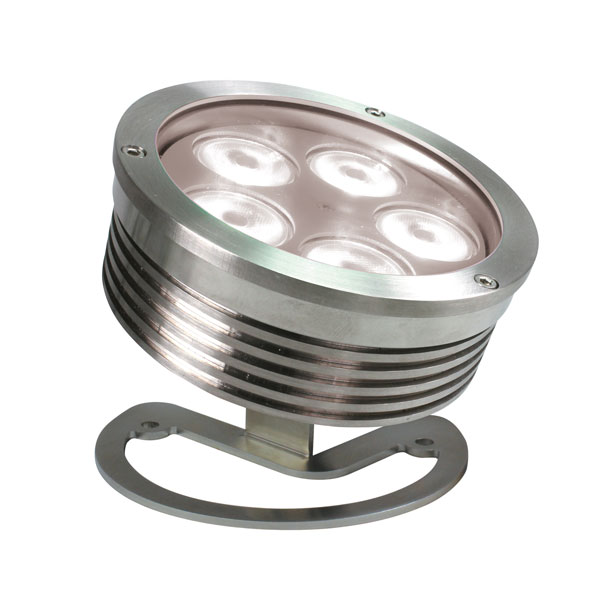

White Balance lighting fixture 20-48V version with DMX on board and external power supply. IP 67 stainless steel AISI 304 with bracket suitable for outdoor installations. It includes 5 warm + 5 cool (10W) white LEDs.

Downloads

UM_Terra-Aria POB_all series.pdf
download
Download
Technical specification
LED type
CW+WW (5W)
Number of LEDs
5 (2700K) + 5 (6500K)
LED expected lifetime (hrs)
50000
Lumen MAX
2200
Lenses
8°
15°
15°x30°
25°
40°
60°
Filters (optional)
None
Filter f17° tilt
Filter f34° tilt
Filter f65° frost
Connectors and cables
Combo-cable Main Power + DMX signal (2x1mm+3x0,25mm - 1,5mt)
Connettori e cavi (optional)
Cable: type and length (optional)
Control type
External Power Supply
DMX - RDM
DMX - RDM + DALI
Functions
Dedicated DMX channel for white balance from 2700K to 6500K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
Flicker-free function
Setup
RDM/DRS
DMX channels
4ch - 2ch - 1ch
Input range
CV 20 - 48 VDC
Power (W)
16
IP protection rating
67
68 optional
Materials
Ultra clear 10mm tempered glass
All in stainless steel AISI304
Mounting systems
Surface
Truss (optional)
Dimensions d x h (mm)
134 x 115
Weight (Kgs)
2,7
Case
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
FILTER-SING 105 (art.900420)
No
Yes
FILTER-DOUB 105 (art.900421)
No
Yes
FILTER-SING 105-W (art.900419)
No
Yes
AR-WB long bracket (art.900538)
No
Yes
PS 10 TERRA-ARIA (art. 550170)
No
Yes
PS 4 TERRA-ARIA (art.551170)
No
Yes
PS 1 TERRA-ARIA (art.552170)
No
Yes
Product Configurations
  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen MAX
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power (W)
  • IP protection rating
  • Dimensions d x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Product Category
  • Case
  • FILTER-SING 105 (art.900420)
  • FILTER-DOUB 105 (art.900421)
  • FILTER-SING 105-W (art.900419)
  • AR-WB long bracket (art.900538)
  • PS 10 TERRA-ARIA (art. 550170)
  • PS 4 TERRA-ARIA (art.551170)
  • PS 1 TERRA-ARIA (art.552170)
