Product Description

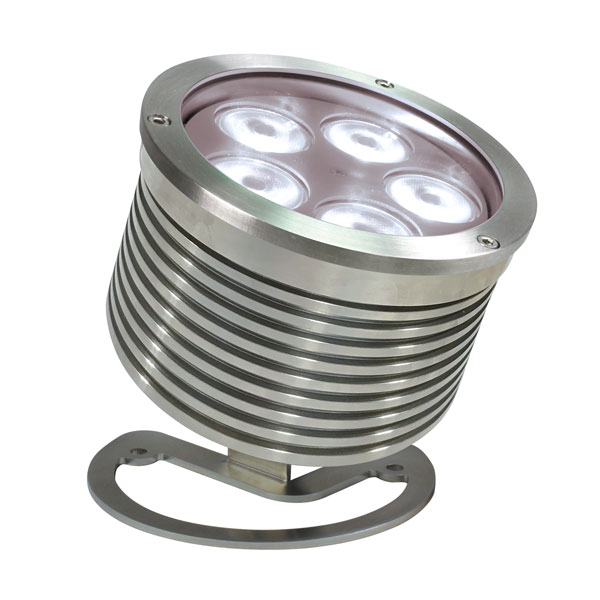

Apparecchio White Balance con alimentazione e DMX a bordo, grado di protezione IP 67, in acciaio inossidabile AISI 304 con staffa. Adatto per installazioni all’esterno. Presenta 5 LEDs bianco caldo + 5 bianco freddo (10W)

Downloads

UM_Terra-Aria POB_all series.pdf
download
Download
Technical specification
LED type
CW+WW (5W)
Number of LEDs
5 (2700K) + 5 (6500K)
LED expected lifetime (hrs)
50000
Lumen max (lm)
2200
Lenses
8°
15°
15°x30°
25°
40°
60°
Filters (optional)
None
Filter f17° tilt
Filter f34° tilt
Filter f65° frost
Connectors and cables
Main Power: 3x1mm cable H05 1,5mt
DMX signal: shielded cable 3x0,25 1,5mt bare ends
Connettori e cavi (optional)
Cable: type and length (optional)
Control type
DMX - RDM
DMX - RDM + DALI
Functions
Dedicated DMX channel for white balance from 2700K to 6500K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
Flicker-free function
Setup
RDM/DRS
DMX channels
4ch - 2ch - 1ch
Input range
100 - 277 VAC; 47/63 Hz
Power max (W)
18
IP protection rating
67
68 optional
Materials
Ultra clear 10mm tempered glass
All in stainless steel AISI304
Mounting systems
Surface
Truss (optional)
IK grade protection
08
Dimensions d x h (mm)
134 x 137
Weight (Kgs)
3,8
Case
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
AR-WB long bracket (art.900538)
No
Yes
FILTER-DOUB 105 (art.900421)
No
Yes
FILTER-SING 105 (art.900420)
No
Yes
FILTER-SING 105-W (art.900419)
No
Yes
Product Configurations
  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen max (lm)
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power max (W)
  • IP protection rating
  • IK grade protection
  • Dimensions d x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Product Category
  • Case
  • AR-WB long bracket (art.900538)
  • FILTER-DOUB 105 (art.900421)
  • FILTER-SING 105 (art.900420)
  • FILTER-SING 105-W (art.900419)
