Product Description

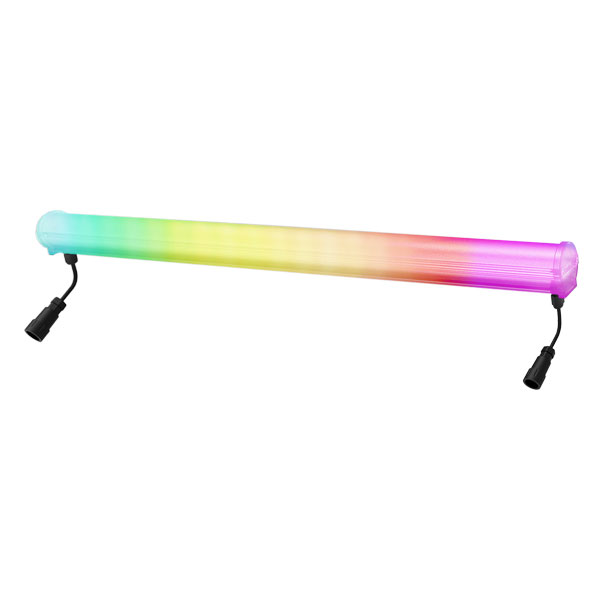

Ultra small form factor LED LINEAR TUBE 50cm (on request) long with IP 67 rating protection. Suitable for architectural lighting, pixel visual effects and light games. 20 single pixel individual control per mt to obtain astonishing effects. Standard 100cm. Aluminum dissipating structure and PMMA tube. To drive COLORFLOW IC RGB (individual control) use SPI Power box Driver. On request: adjustable bracket -/+ 78°
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGB
|
Number of LEDs
|
60
|
Red lumen (lm)
|
100
|
Green lumen (lm)
|
265
|
Blu lumen (lm)
|
65
|
| Optics | |
Lenses
|
180°
|
| Control | |
Control type
|
SPI POWER BOX Driver
|
| Power supply | |
Power (W)
|
15
|
Current
|
0,32A@48VDC
|
| Physical | |
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
510 x 46
|
Weight (Kgs)
|
0,7
|
Mounting systems
|
Surface
|
Colour finishing
|
None
|
Marine Grade treatment
|
None
|
