Product Description

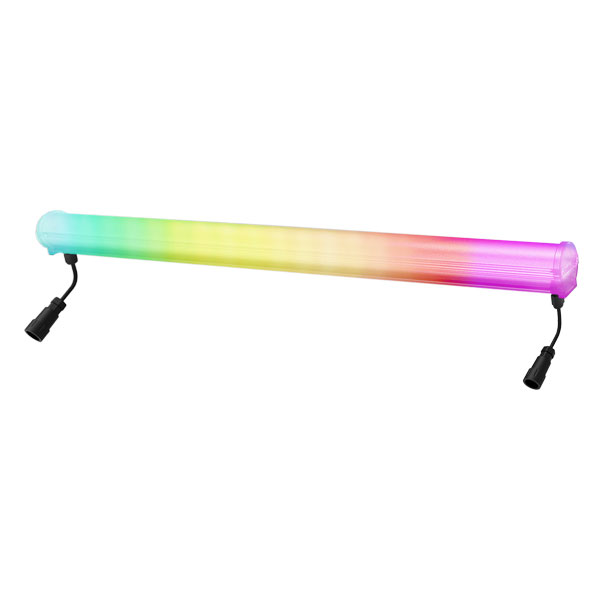

Ultra small form factor LED LINEAR TUBE 50cm (on request) long with IP 67 rating protection. Suitable for architectural lighting, pixel visual effects and light games. 20 single pixel individual control per mt to obtain astonishing effects. Standard 100cm. Aluminum dissipating structure and PMMA tube. To drive COLORFLOW IC RGB (individual control) use SPI Power box Driver. On request: adjustable bracket -/+ 78°


Downloads

UM_ColorFlow IC RGB_r2-0723.pdf

COLORFLOWRGB50CM.LDT
Technical specification
LED type
RGB
Number of LEDs
60
Red lumen (lm)
100
Green lumen (lm)
265
Blu lumen (lm)
65
Lenses
180°
Control type
SPI POWER BOX Driver
Power (W)
15
Current
0,32A@48VDC
IP protection rating
67
Sizes l x p x h (mm)
510 x 46
Weight (Kgs)
0,7
Mounting systems
Surface
Colour finishing
None
Marine Grade treatment
None
