Product Description

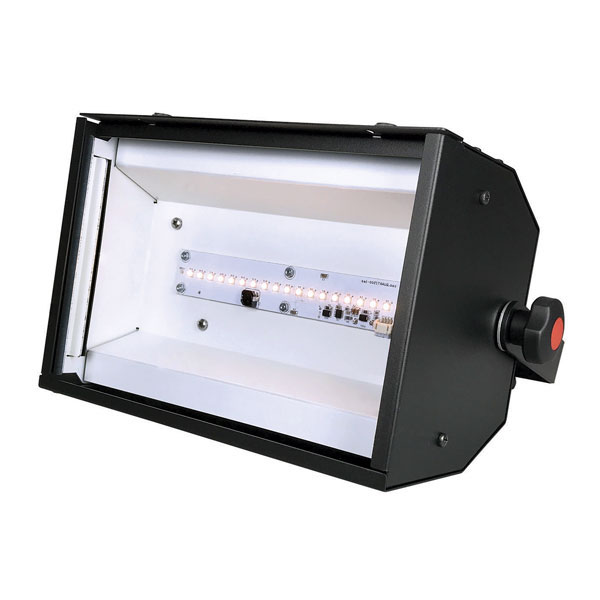

Compact LED diffuser with Hi-Power strip LEDs that reproduce Halogen linear lamp.
ACCESSORIES:
- it. 900535 MARINE GRADE TREATMENT
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 5750K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
19 LEDS 5750K
|
Lumen MAX
|
10000
|
| Optics | |
Lenses
|
110° no lens
|
| Control | |
Control type
|
DMX - RDM
|
| Functions and Setup | |
Functions
|
RDM/DRS
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power (W)
|
80
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
20
|
Sizes l x p x h (mm)
|
285 x 225 x 175
|
Weight (Kgs)
|
3
|
| Optional/Accessories | |
Accessories - Barn door
|
None
Yes
|
Accessorio - Filtro 65°
|
None
Yes
|
Accessorio - Filtro 17°
|
Yes
None
|
