Product Description

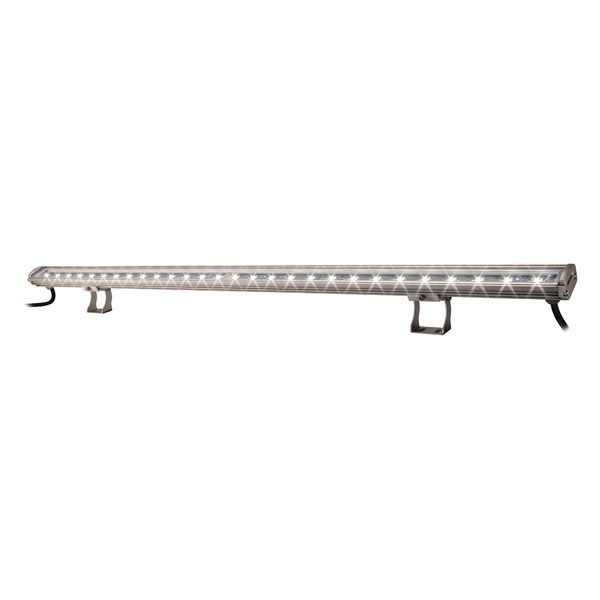

Ultra small form factor wash LED (White balance) linear bar 100cm long with high efficiency LEDs. IP67 protection rating. 120° optics, no lenses. External Power Supply and Driver.
Downloads
Technical specification
Lighting source | |
---|---|
LED type
|
CW+WW (5W)
|
Number of LEDs
|
56 (2700K) + 56 (6500K)
|
Lumen max (lm)
|
2300 + 2600
|
Optics | |
Lenses
|
120° beam
|
Control | |
Control type
|
DMX - RDM
DMX - RDM + DALI
|
Functions and Setup | |
Functions
|
RDM/DRS
|
Power supply | |
Power max (W)
|
42
|
Physical | |
Mounting systems
|
Surface
Truss (optional)
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
1000 x 46 x 30,5
|
Weight (Kgs)
|
1
|
Colour finishing
|
Anodized light grey
|
Marine Grade treatment
|
None
|
