Product Description

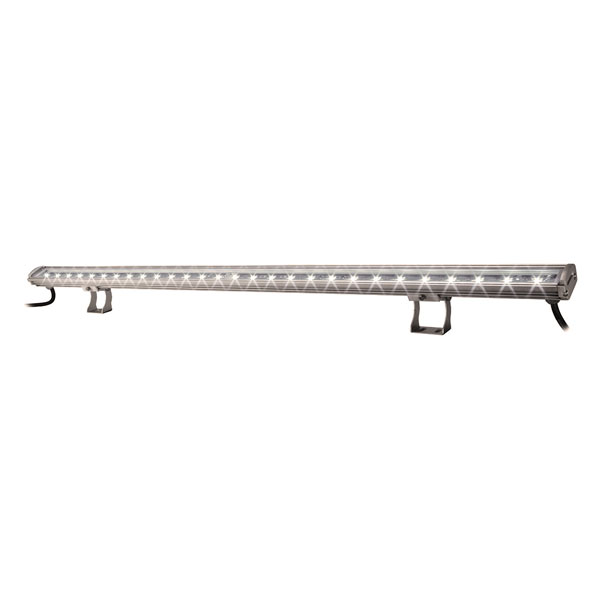

Ultra small form factor Wash Led Linear bar 50 cm long with high efficiency LEDs . IP67 protection rating. 120° optics, no lenses. External Power Supply and Driver.


Downloads

UM_Slimbar Plus-Flat_art-2012-2014-1710-11-12.pdf
Technical specification
LED type
CW+WW (5W)
Number of LEDs
28 (2700K) + 28 (6500K)
Lumen MAX
1150 + 1300
Lenses
120° beam
Control type
DMX - RDM
DMX - RDM + DALI
Functions
RDM/DRS
Power (W)
21
Mounting systems
Surface
Truss (optional)
IP protection rating
67
Sizes l x p x h (mm)
500 x 46 x 30,5
Weight (Kgs)
0,5
Colour finishing
Anodized light grey
Marine Grade treatment
None
