Product Description

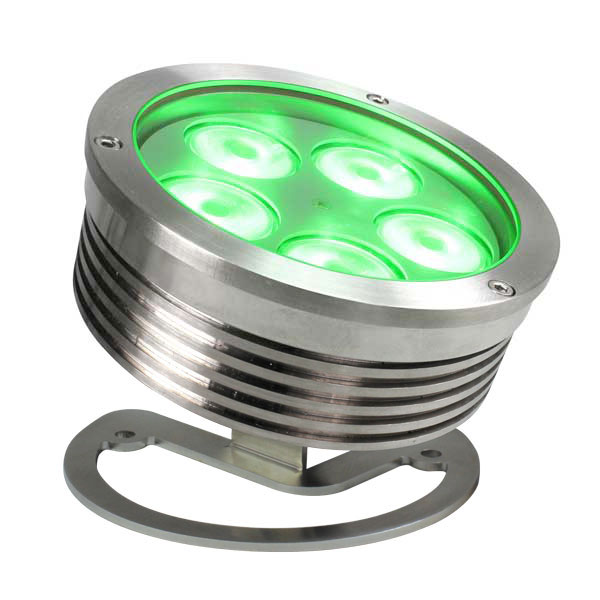

IP 67 protection rating, it includes n. 5 x 10W RGBW/FC LEDs standard optic. Stainless steel AISI 304 spot light with bracket suitable for outdoor installations. External Control Driver.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
5
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
1815
|
Red lumen (lm)
|
330
|
Green lumen (lm)
|
770
|
Blu lumen (lm)
|
110
|
White lumen (lm)
|
715
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Filter f17° tilt
Filter f34° tilt
Filter f65° frost
|
| Connections | |
Connectors and cables
|
Driver cable (4x0,5mm + 1x1mm - 1,5mt)
|
Connettori e cavi (optional)
|
Cable: type and length (optional)
|
| Functions and Setup | |
Functions
|
Control Driver esterno
|
| Power supply | |
Input range
|
17 VDC
|
Power max (W)
|
18
|
| Physical | |
IP protection rating
|
67
68 optional
|
Materials
|
Ultra clear 10mm tempered glass
All in stainless steel AISI304
|
Mounting systems
|
Surface
Truss (optional)
|
IK grade protection
|
08
|
Dimensions d x h (mm)
|
134 x 108,5
|
Weight (Kgs)
|
2,5
|
| Finishings | |
Case
|
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
|
| Uncategorized | |
MD BOX 17V (art. 500170)
|
No
Yes
|
CONTROL BOX IC5 17V (art.510170)
|
No
Yes
|
CD 10 TER RGBW-M (art.531170)
|
No
Yes
|
CD 4 TER RGBW-M (art.553170)
|
No
Yes
|
CD 1 TER RGBW-M (art.537170)
|
No
Yes
|
