Product Description

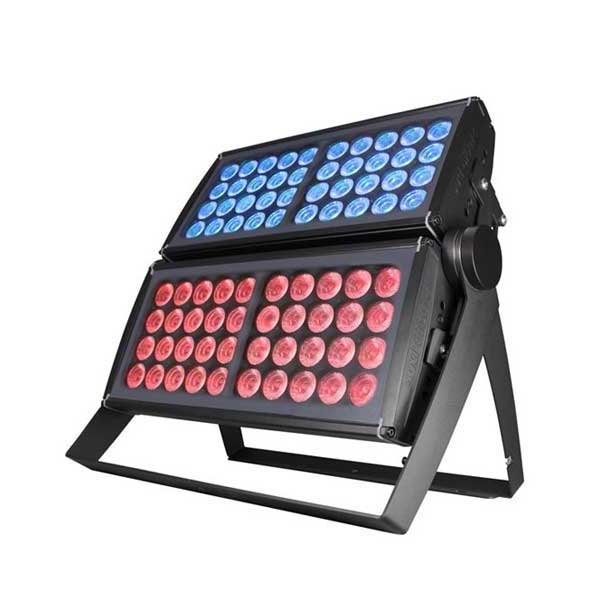

Colorchanger a due teste in versione ancora più potente. I LEDs di ogni testa possono essere pilotati separatamente. Nr. 80 Hi-Power LEDs. Grado di protezione IP 67. Possibilità di montare lenti differenti su ogni testa.
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
80
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
56000
|
Red lumen (lm)
|
13440
|
Green lumen (lm)
|
18800
|
Blu lumen (lm)
|
4000
|
White lumen (lm)
|
24800
|
| Optics | |
Lenses (upper head)
|
6°
10°
15°
25°
40°
60°
|
Lenses (lower head)
|
6°
10°
15°
25°
40°
60°
|
Filters upper head (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 60° x 1° (1° = native lens) vertical
|
Filters lower head (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 60° x 1° (1° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: 3x1,5mm cable
DMX signal: 4pin IP67 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS + touch control panel
|
DMX channels
|
13ch - 8ch - 4ch
|
| Power supply | |
Input range
|
120 - 277 VAC; 47/63 Hz
|
Power max (W)
|
600
|
Current
|
2,5A@230VAC
|
Inrush current
|
120A@230V
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
67
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
657 x 182 x 641
|
Weight (Kgs)
|
32
|
| Optional/Accessories | |
Accessories - Flight case
|
None
Yes
|
Accessories - Anti glare
|
None
Yes
|
Accessories - Barn door
|
None
Yes
|
