Product Description

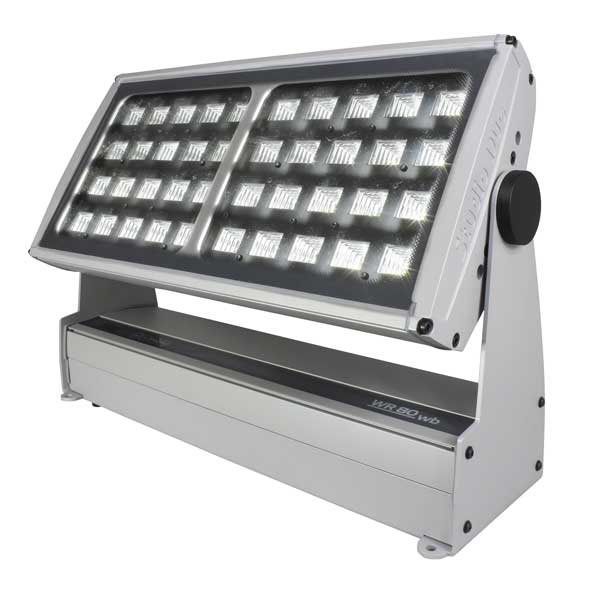

White Balance fixture. 40 warm + 40 cool high brightness White LEDs combined with an innovative optic system with antiglare REFLECTORS. IP 67 protection rating.
Downloads
Technical specification
Lighting source | |
---|---|
LED type
|
WHITE 2700K
WHITE 6500K
|
Number of LEDs
|
80 White (5W)
|
Lumen max (lm)
|
30000
|
Optics | |
Lenses
|
70°x55°
|
Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
Functions and Setup | |
Functions
|
RDM/DRS
Wireless DMX receiver
|
Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power max (W)
|
260
|
Physical | |
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
613 x 184 x 420
|
Weight (Kgs)
|
15
|
