Product Description

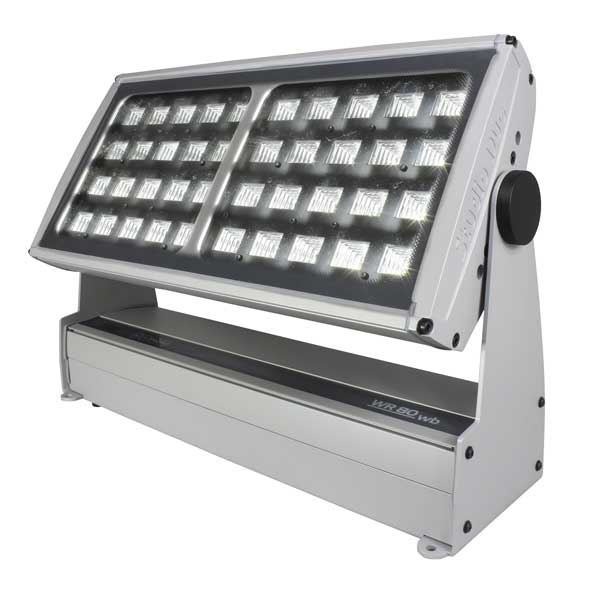

White Balance fixture. 40 warm + 40 cool high brightness White LEDs combined with an innovative optic system with antiglare REFLECTORS. IP 67 protection rating.


Downloads

UM_WR80 WB_art-14111.pdf
Technical specification
LED type
WHITE 2700K
WHITE 6500K
Number of LEDs
80 White (5W)
Lumen MAX
30000
Lenses
70°x55°
Control type
DMX - RDM
DMX - RDM + Wireless (on request)
Functions
RDM/DRS
Wireless DMX receiver
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
260
Mounting systems
Surface
Truss (optional)
Colour finishing
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
Marine Grade treatment
None
Yes
IP protection rating
67
Sizes l x p x h (mm)
613 x 184 x 420
Weight (Kgs)
15
