Product Description

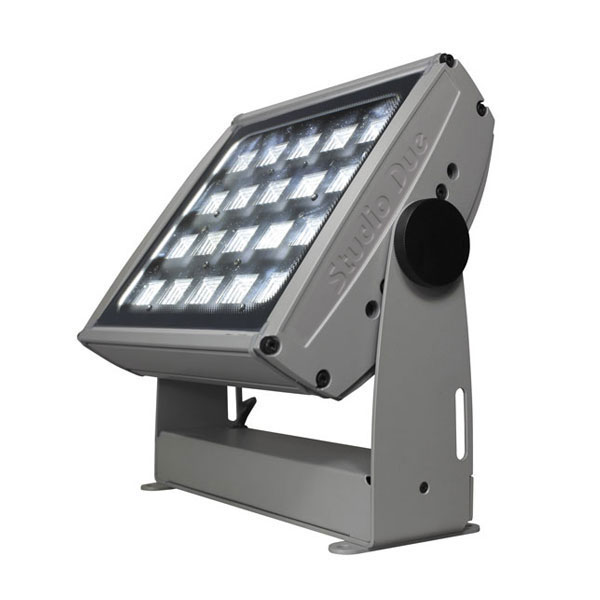

Apparecchio monocromatico, utilizza n. 40 LEDs bianchi ad alta luminosità combinati con un innovativo sistema di ottiche con RIFLETTORI anti abbagliamento. Grado di protezione IP 67. Versione PLUG-IN
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
40 White (5W)
|
Lumen max (lm)
|
12500
|
| Optics | |
Lenses
|
70°x55° (antiglare square reflectors)
|
| Control | |
Control type
|
Plug-in
|
| Functions and Setup | |
Functions
|
N/A
|
| Power supply | |
Input range
|
Universal 100 - 240 VAC; 50/60 Hz
|
Power max (W)
|
100
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
350 x 130 x 340
|
Weight (Kgs)
|
9
|
