Product Description

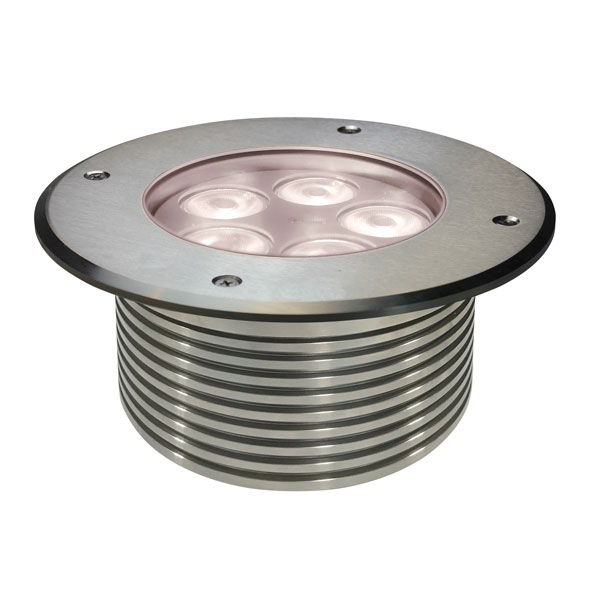

On-board power supply and DMX. IP 67 stainless steel AISI 304 inground lighting fixtures. Suitable for outdoor installations. It includes 5 warm + 5 cool (10W) white LEDs. DMX- RDM-DRS version,
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
CW+WW (5W)
|
Number of LEDs
|
5 (2700K) + 5 (6500K)
|
Lumen max (lm)
|
2200
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters
|
None
f 17° tilt
f34° tilt
f 60°
f 65°
f 100°
f 8°x 60°
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H05 1,5mt
DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
|
| Control | |
Control type
|
DMX - RDM
|
| Functions and Setup | |
Functions
|
Dedicated DMX channel for white balance from 2700K to 6500K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
4ch - 2ch - 1ch
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power max (W)
|
18
|
| Physical | |
IP protection rating
|
67
68 optional
|
IK grade protection
|
08
|
Dimensions d x h (mm)
|
190 x 74,6
|
Weight (Kgs)
|
4,0
|
Materials
|
Ultra clear 10mm tempered glass
|
Mounting systems
|
Inground
|
| Finishings | |
Case
|
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
|
