Product Description

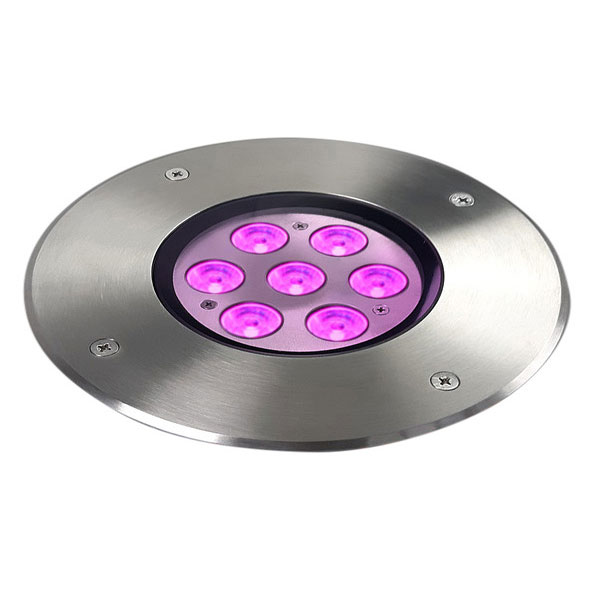

Inground LED fixture (230V) with 7 RGBW LEDs suitable for outdoor installation. On board power supply and DMX (POB). IP 68 not for immersion degree of protection. AISI 316 body and flange.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW multi-chip with white 4000K
|
Number of LEDs
|
7
|
LED expected lifetime (hrs)
|
50000
|
Lumen MAX
|
890
|
Red lumen (lm)
|
225
|
Green lumen (lm)
|
340
|
Blu lumen (lm)
|
130
|
White lumen (lm)
|
330
|
CRI
|
>80
|
| Optics | |
Lenses
|
10°
10°x30°
15°x55°
25°
40°
60°
|
Filters
|
None
f 17° tilt
f 100°
|
| Connections | |
Connectors and cables
|
1.5mt 3x0.75mm power cable, 1.5mt 2x0.35mm+shield DMX signal cable
|
| Control | |
Control type
|
DMX - RDM
|
| Functions and Setup | |
Functions
|
Dedicated DMX channel for white balance from 2000K to 10000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
9ch - 5ch - 4ch
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power (W)
|
13
|
Current
|
60mA@230VAC
|
Inrush current
|
40A@230V
|
| Physical | |
Materials
|
Ultra clear 10mm tempered glass
PMMA lenses
All in stainless steel AISI316
|
IP protection rating
|
68 (not for immersion)
|
IK grade protection
|
09
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
190x80
|
Weight (Kgs)
|
2
|
Mounting systems
|
Inground
|
Colour finishing
|
AISI 316 brushed
|
Marine Grade treatment
|
Yes
|
