Product Description

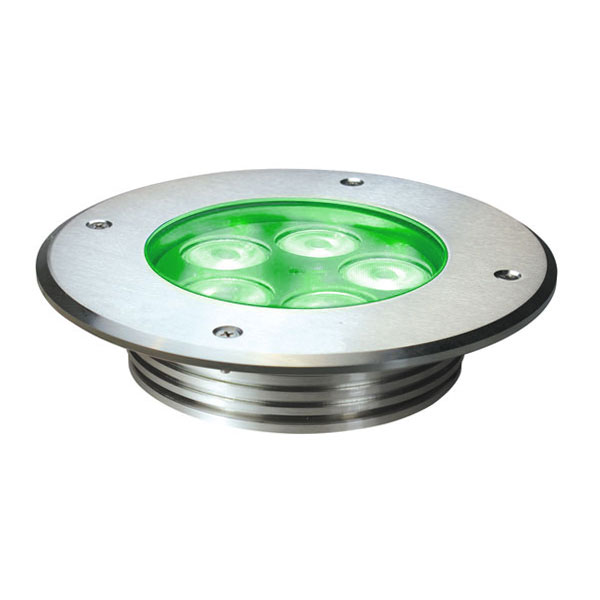

IP 67 protection rating, it includes n.5 x 10W RGBW/Fc LEDs. External Power Supply. Stainless steel AISI 304 inground lighting fixture suitable for outdoor installations.
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
5
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
1815
|
Red lumen (lm)
|
330
|
Green lumen (lm)
|
770
|
Blu lumen (lm)
|
110
|
White lumen (lm)
|
715
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters
|
None
f 17° tilt
f34° tilt
frost 65°
|
| Control | |
Control type
|
DMX - RDM
|
| Functions and Setup | |
Functions
|
Control Driver esterno
|
| Power supply | |
Input range
|
17 VDC
|
Power max (W)
|
18
|
| Physical | |
IP protection rating
|
67
68 optional
|
Materials
|
Ultra clear 10mm tempered glass
All in stainless steel AISI304
|
IK grade protection
|
08
|
Dimensions d x h (mm)
|
190 x 47,5
|
Weight (Kgs)
|
2,5
|
Mounting systems
|
Inground
|
| Finishings | |
Case
|
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
|
| Uncategorized | |
FILTER-SING 105-W (art.900419)
|
No
Yes
|
FILTER-SING 105 (art.900420)
|
No
Yes
|
FILTER-DOUB 105 (art.900421)
|
No
Yes
|
CD 1 TER RGBW-M (art.537170)
|
No
Yes
|
CD 10 TER RGBW-M (art.531170)
|
No
Yes
|
CD 4 TER RGBW-M (art.553170)
|
No
Yes
|
CONTROL BOX IC5 17V (art.510170)
|
No
Yes
|
MD BOX 17V (art. 500170)
|
No
Yes
|
Plastic Case TER (art.900537)
|
No
Yes
|
