Product Description

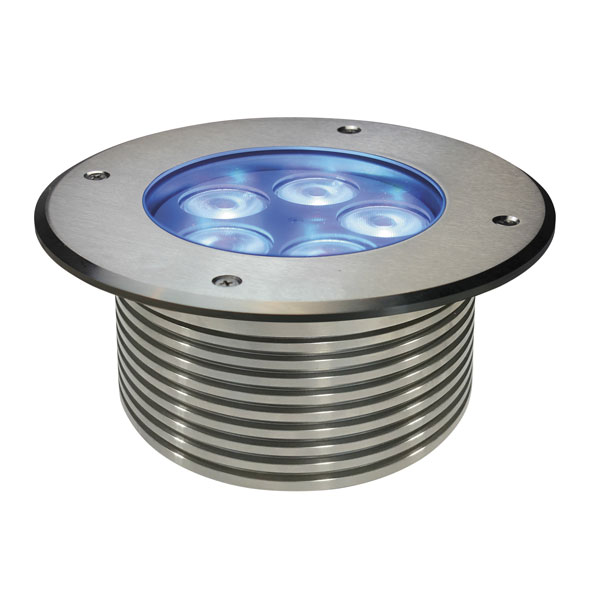

On Board power supply and DMX IP 67 stainless steel AISI 304 inground lighting fixture suitable for outdoor installations. It includes n.5 x 10W RGBW LEDs.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
5
|
LED expected lifetime (hrs)
|
50000
|
Lumen MAX
|
1815
|
Red lumen (lm)
|
330
|
Green lumen (lm)
|
770
|
Blu lumen (lm)
|
110
|
White lumen (lm)
|
715
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters
|
None
f 17° tilt
f34° tilt
f 60°
f 65°
f 100°
f 8°x 60°
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H05 1,5mt
DMX signal: IN/OUT cable 0,3mt. + 4pin connectors IP67 (male-female)
|
| Control | |
Control type
|
DMX - RDM
|
| Functions and Setup | |
Functions
|
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
9ch - 6ch - 5ch - 4ch
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power (W)
|
20
|
Current
|
100mA@230VAC
|
Inrush current
|
45A@230V
|
| Physical | |
IP protection rating
|
67
68 optional
|
IK grade protection
|
08
|
Dimensions d x h (mm)
|
190 x 74,6
|
Weight (Kgs)
|
4
|
Materials
|
Ultra clear 10mm tempered glass
|
Mounting systems
|
Inground
|
| Finishings | |
Case
|
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
|
