Product Description

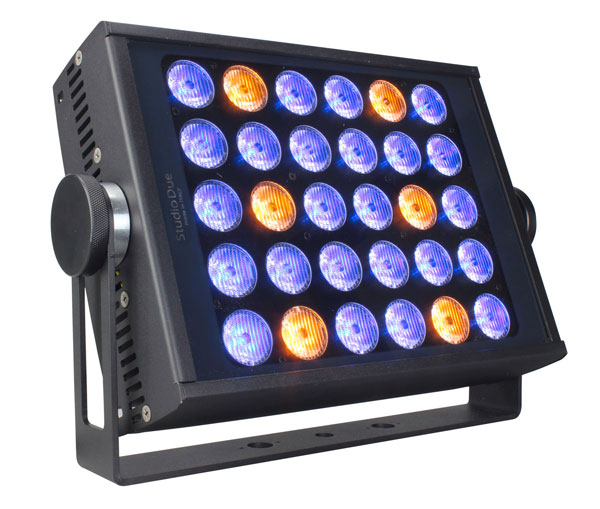

Wash LED colorchanger fixture ( 24 RGBW + 12 Amber LEDs) with control panel (4 push buttons on the rear of the fixture). IP20 protection rating.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBWA
|
Number of LEDs
|
36
|
Lumen MAX
|
14600
|
Red lumen (lm)
|
2200
|
Green lumen (lm)
|
5000
|
Blu lumen (lm)
|
700
|
White lumen (lm)
|
5000
|
Amber lumen (lm)
|
2400
|
| Optics | |
Lenses
|
12°
15°x30°
15°x55°
24°
36°
|
| Connections | |
Connectors and cables
|
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
Dedicated DMX channel for white balance from 2000K to 10000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS + push button panel
|
DMX channels
|
10ch - 7ch - 6ch - 5ch
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power (W)
|
150
|
Current
|
0,7A@230V
|
Power Factor
|
PF>0,95@230VAC
|
| Physical | |
Materials
|
PMMA lenses
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
360°
|
IP protection rating
|
20
|
Sizes l x p x h (mm)
|
365 x 90 x 265
|
Weight (Kgs)
|
6,6
|
