Product Description

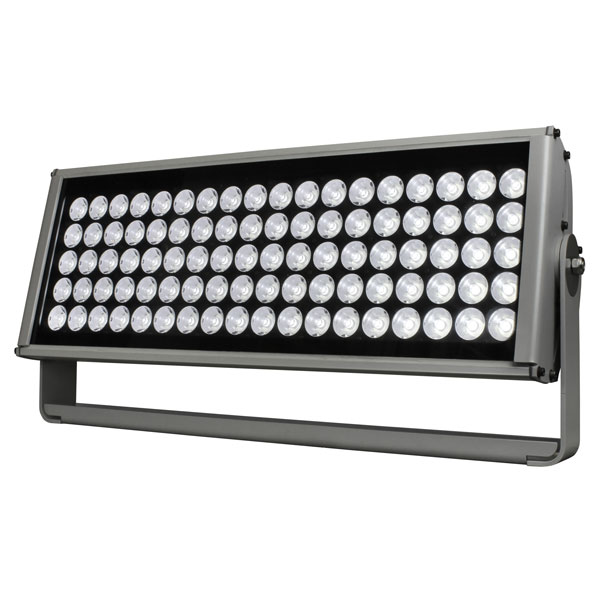

Optional DMX-RDM and DALI interface for STADIO 90
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
BIANCO 5600K
WHITE 6500K
|
Number of LEDs
|
90
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
50000 (@6500K - lens 4°)
|
CRI
|
>70 (on request >80, >90)
|
Efficiency
|
150lm/W (light source), 130lm/W (fixture)
|
| Optics | |
Lenses
|
4°
8°
15°
15°x30°
25°
40°
60°
|
Filters
|
None
f 30°
f 80°
f 100°
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H05 1,5mt
DMX signal: 4pin IP67 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM + DALI
DMX - RDM + DALI + Wireless (on request)
|
| Functions and Setup | |
Setup
|
RDM/DRS
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power max (W)
|
390
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
180°
|
IP protection rating
|
67
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
770 x 160 x 340
|
Weight (Kgs)
|
17
|
