Product Description

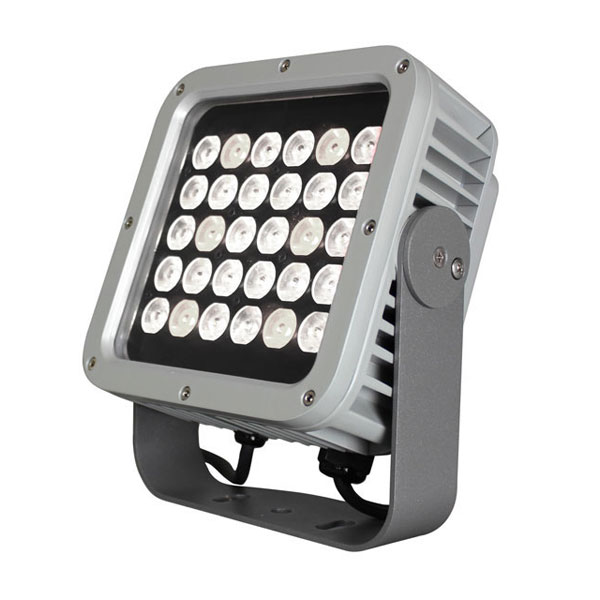

Compact floodlight Monochromatic and White Balance projector with compact design and robust aluminium case suitable for accent lighting
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 5000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
30 NICHIA-NVSL219C
|
LED expected lifetime (hrs)
|
50000
|
Lumen MAX
|
6000
|
| Optics | |
Lenses
|
5°
10°x30°
12°
15°x55°
24°
36°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 1° x 60° (1° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: 3x1,5mm cable
DMX signal: cable 0,6mt + 3pin IP67 M14 connector (male-female)
|
Connettori e cavi (optional)
|
Cable: type and length (optional)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
RDM/DRS
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
3ch - 1ch
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power (W)
|
38
|
Current
|
0,16A@230VAC
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
175°
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
205x110x235
|
Weight (Kgs)
|
3,2
|
| Optional/Accessories | |
A - Anti glare SM30-BD
|
None
Yes
|
