Product Description

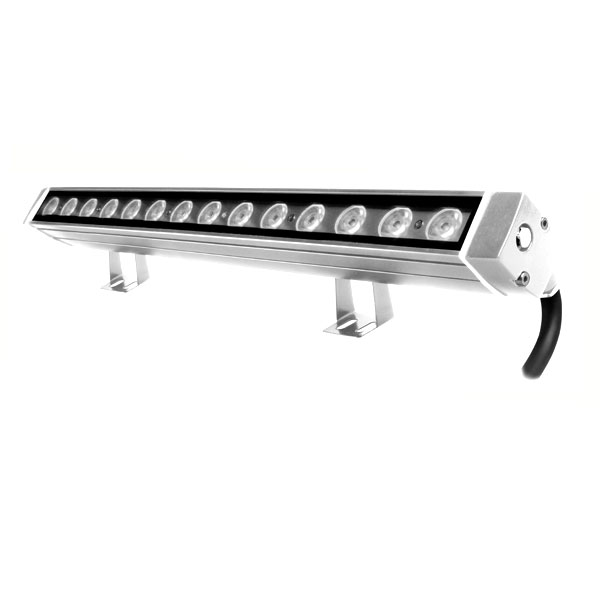

Ultra small form factor LED linear bar 50 cm long (on request) with n.15 neutral white LEDs. External Power Supply and driver. 20mm lenses. IP 67 protection rating. Dimmable version. Standard 100cm.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
BIANCO 2900K high efficiency mid power
BIANCO 4000K high efficiency mid power
|
Number of LEDs
|
15
|
Lumen MAX
|
1000@4000K
|
| Optics | |
Lenses
|
10°x30°
12°
24°
36°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
Filters
|
2700K: 2000lm 4000k: 2250lm 6200K: 2500lm
|
| Control | |
Control type
|
External Control Driver
|
| Power supply | |
Input range
|
CV 48 VDC
|
Power (W)
|
8
|
Current
|
0,17A@48VDC
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
525x40x60
|
Weight (Kgs)
|
1
|
Colour finishing
|
Anodized light grey
|
Marine Grade treatment
|
None
|
| Uncategorized | |
SB/P PILOT MAX M DALI (art.525480)
|
No
Yes
|
SB/P PILOT PLUS M DALI (art.524480)
|
No
Yes
|
SB/P PS PLUG-IN 150 M (art.515480)
|
No
Yes
|
SB/P PS PLUG-IN 320 M (art.532480)
|
No
Yes
|
SB/P PS PLUG-IN 60 M (art.560480)
|
No
Yes
|
SB/PILOT M DALI (art.533480)
|
No
Yes
|
SPS/P150-50 M (art.548150)
|
No
Yes
|
SPS/P320-50 M (art.548320)
|
No
Yes
|
SPS/P60-50 M (art.548060)
|
No
Yes
|
