Product Description

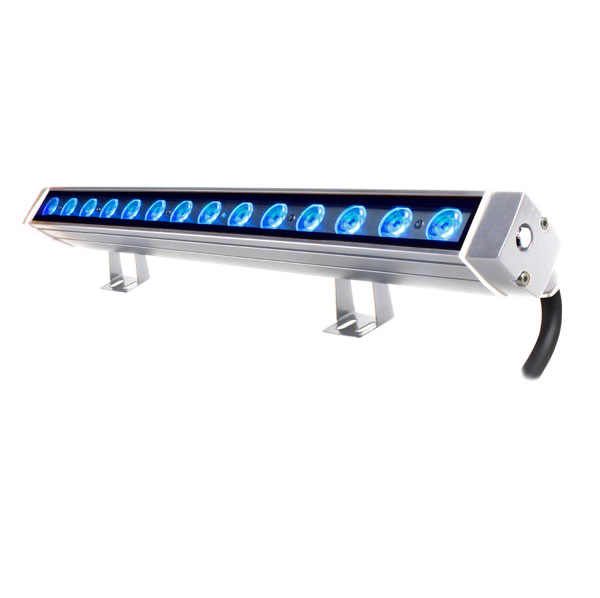

Very small LED linear bar with no.14 RGBW LEDs. External Power Supply and Driver. 23mm lenses. IP 67 degree of protection.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGB-NW (white 4000K)
|
Number of LEDs
|
14
|
Lumen max (lm)
|
1000
|
Red lumen (lm)
|
280
|
Green lumen (lm)
|
420
|
Blu lumen (lm)
|
140
|
White lumen (lm)
|
440
|
| Optics | |
Lenses
|
10°
10°x30°
15°x55°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x n° (n° = native lens) horizontal
|
| Control | |
Control type
|
External Control Driver
|
| Power supply | |
Input range
|
CV 48 VDC
|
Power max (W)
|
18
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
525 x 40 x 60 mm.
|
Weight (Kgs)
|
1
|
Colour finishing
|
Anodized light grey
|
Marine Grade treatment
|
None
|
| Uncategorized | |
SB/P PILOT DRS RGBW-M (art.523480)
|
No
Yes
|
SB/P PILOT PLUS DRS RGBW-M (art.522480)
|
No
Yes
|
CONTROL BOX IC5 48V (art. 510480)
|
No
Yes
|
MD BOX 48V (art.500480)
|
No
Yes
|
SB/P PILOT MAX RGBW-M (art.520480)
|
No
Yes
|
SB/P PILOT PLUS RGBW-M (art.521480)
|
No
Yes
|
