Product Description

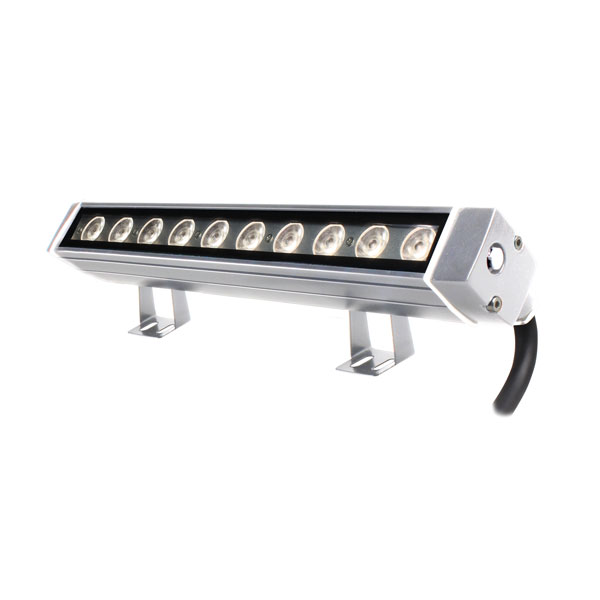

Ultra small form factor LED linear bar with 30cm long (on request). n.10 LEDs. On board Power Supply. With 20mm lenses. Also available 50cm. long with n.15 LEDs. IP67 protection rating. Standard 100cm. Dimmable version
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
BIANCO 2900K high efficiency mid power
BIANCO 4000K high efficiency mid power
|
Number of LEDs
|
10
|
Lumen MAX
|
1500
|
| Optics | |
Lenses
|
5°
10°
10°x30°
15°x55°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
| Control | |
Control type
|
DMX - RDM
|
| Functions and Setup | |
Functions
|
RDM/DRS
|
| Power supply | |
Input range
|
200 - 240 VAC; 47/63 Hz
|
Power (W)
|
12
|
Daisy chain Power+DMX (max n. fixture)
|
16
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
315 x 40 x 60
|
Weight (Kgs)
|
0,5
|
Colour finishing
|
Anodized light grey
|
Marine Grade treatment
|
None
|
