Product Description

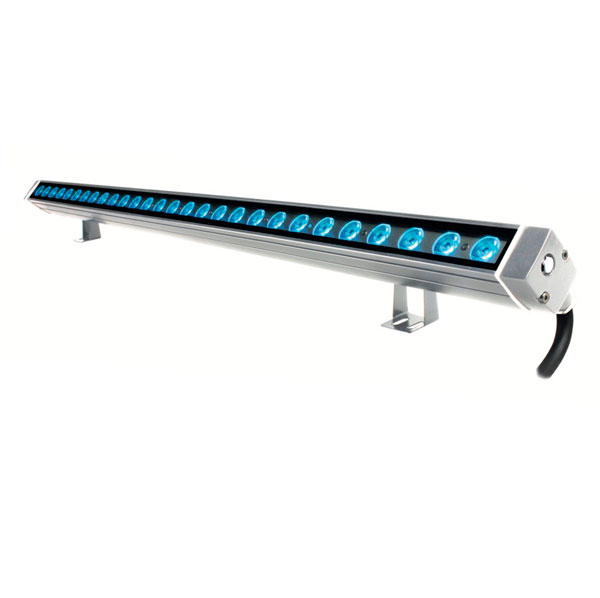

Very small LED linear bar with no.28 RGBW LEDs. On-board power supply. 20mm lenses. IP 67 degree of protection. Standard 100cm. Also available 50cm, with n.14 LEDs or 30cm with n.9 LEDs.
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGB-NW (white 4000K)
|
Number of LEDs
|
28
|
Lumen max (lm)
|
3500
|
Red lumen (lm)
|
800
|
Green lumen (lm)
|
1200
|
Blu lumen (lm)
|
400
|
White lumen (lm)
|
1250
|
| Optics | |
Lenses
|
10°
10°x30°
15°x55°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
| Connections | |
Connectors and cables
|
Combo-cable 2x1mm Red-Black + 2x0.25mm shielded + 1x1mm Earth - cable 0.6mt
|
Connettori e cavi (optional)
|
Cable: type and length (optional)
|
| Control | |
Control type
|
DMX - RDM
|
| Functions and Setup | |
Functions
|
RDM/DRS
|
| Power supply | |
Input range
|
200 - 240 VAC; 47/63 Hz
|
Power max (W)
|
60
|
Daisy chain Power+DMX (max n. fixture)
|
16
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
1005 x40 x 60 mm
|
Weight (Kgs)
|
2
|
Colour finishing
|
Anodized light grey
|
Marine Grade treatment
|
None
|
