Product Description

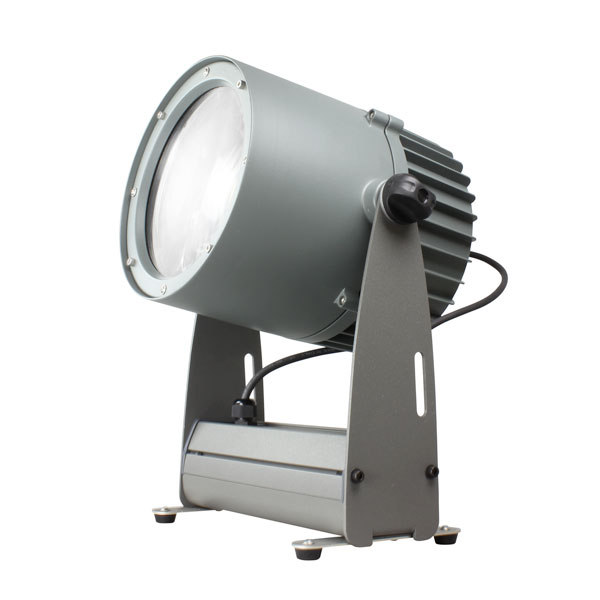

Compact monochromatic LED spot with ultra-narrow 2,5° optic designed for outdoor installations. Plug-In version. IP65 protection rating. Standard W color temperature 6500K.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 6500K
|
Number of LEDs
|
1 NICHIA NVCWL024Z
|
LED expected lifetime (hrs)
|
30000
|
Lumen MAX
|
4300
|
| Optics | |
Lenses
|
2 x 170mm FRESNEL lenses (2,5°)
|
| Control | |
Control type
|
Plug-in
|
| Functions and Setup | |
Functions
|
N/A
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power (W)
|
80
|
Inrush current
|
60A@230V
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
65
|
Sizes l x p x h (mm)
|
290 x 238 x 370
|
Weight (Kgs)
|
5
|
Colour finishing
|
Grey RAL 9006 (standard)
|
| Optional/Accessories | |
Accessories - Barn door
|
None
Yes
|
