Product Description

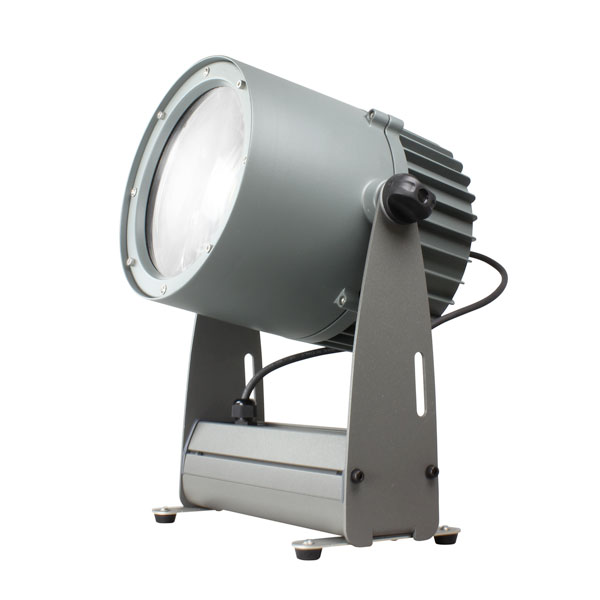

Compact monochromatic LED spot with ultra-narrow 2,5° optic designed for outdoor installations. Plug-In version. IP65 protection rating. Standard W color temperature 6500K.


Downloads

UM_PL-Max_art-1910-19101.pdf
Technical specification
LED type
WHITE 6500K
Number of LEDs
1 NICHIA NVCWL024Z
LED expected lifetime (hrs)
30000
Lumen MAX
4300
Lenses
2 x 170mm FRESNEL lenses (2,5°)
Control type
Plug-in
Functions
N/A
Input range
100 - 240 VAC; 47/63 Hz
Power (W)
80
Inrush current
60A@230V
Mounting systems
Surface
Truss (optional)
Marine Grade treatment
None
Yes
IP protection rating
65
Sizes l x p x h (mm)
290 x 238 x 370
Weight (Kgs)
5
Colour finishing
Grey RAL 9006 (standard)
Accessories - Barn door
None
Yes
