Product Description

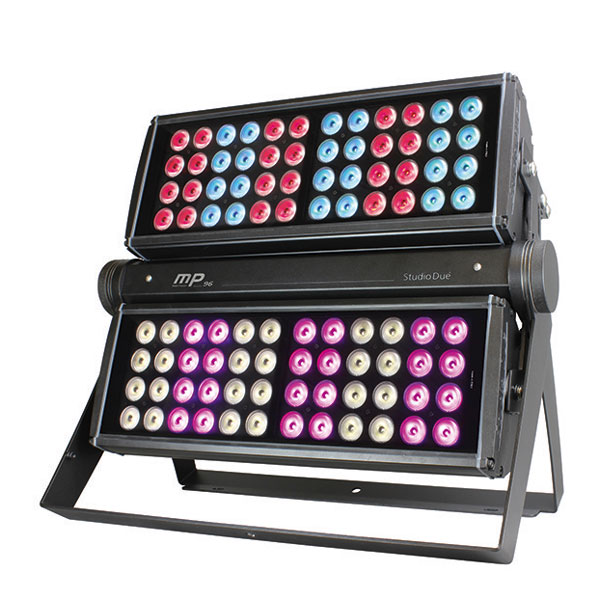

Wash/flood light fixture with 12 independent segment control 8 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. IP 65 protection rating. RDM/DRS.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
96
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
71808
|
Red lumen (lm)
|
15360
|
Green lumen (lm)
|
26880
|
Blu lumen (lm)
|
4800
|
White lumen (lm)
|
29568
|
Colour temperature range (K)
|
2000 - 10000
|
| Optics | |
Lenses (upper head)
|
8°
15°
15°x30°
25°
40°
60°
|
Lenses (lower head)
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (upper head)
|
None
f 60°
f 100°
f 8°x 60°
frost 65°
|
Filters (lower head)
|
None
f 60°
f 100°
f 8°x 60°
frost 65°
|
| Connections | |
Connectors and cables
|
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin IP65 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
Dedicated DMX channel for macro
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS + touch control panel
|
DMX channels
|
54ch - 48ch - 9ch - 4ch
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power max (W)
|
900
|
Current
|
4A@230VAC
|
Power Factor
|
PF>0,95@230VAC
|
Inrush current
|
60A@230V
|
| Physical | |
IP protection rating
|
65
67 optional
|
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
Sizes l x p x h (mm)
|
672 x 204 x 569mm
|
Weight (Kgs)
|
30
|
| Optional/Accessories | |
Accessories - Flight case
|
None
Yes
|
Accessories - Anti glare
|
None
Yes
|
Accessories - Barn door
|
None
Yes
|
Accessories - Handle
|
None
Yes
|
