Product Description

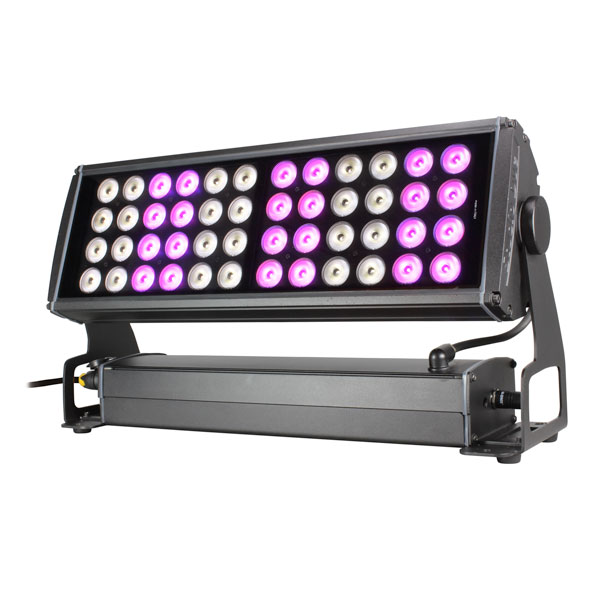

Wash/flood light fixture with 6 independent segment control 8 LEDs, which can be controlled individually to create engaging eye candy that enhances any live production. IP 65 protection rating. RDM/DRS.
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
48
|
LED expected lifetime (hrs)
|
50000
|
Lumen MAX
|
35904
|
Red lumen (lm)
|
7680
|
Green lumen (lm)
|
13440
|
Blu lumen (lm)
|
2400
|
White lumen (lm)
|
14784
|
Colour temperature range (K)
|
2000 - 10000
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 1° x 60° (1° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin IP65 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
Dedicated DMX channel for macro
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS + touch control panel
|
DMX channels
|
30ch - 24ch - 9ch - 4ch
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power (W)
|
450
|
Current
|
2A@230VAC
|
Power Factor
|
PF>0,95@230VAC
|
Inrush current
|
60A@230V
|
| Physical | |
IP protection rating
|
65
67 optional
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
|
Marine Grade treatment
|
None
Yes
|
IK grade protection
|
07
|
Sizes l x p x h (mm)
|
622 x 206 x 330 mm
|
Weight (Kgs)
|
16
|
| Optional/Accessories | |
Accessories - Flight case
|
None
Yes
|
Accessories - Anti glare
|
None
Yes
|
Accessories - Barn door
|
None
Yes
|
Accessories - Handle
|
None
Yes
|
