Product Description

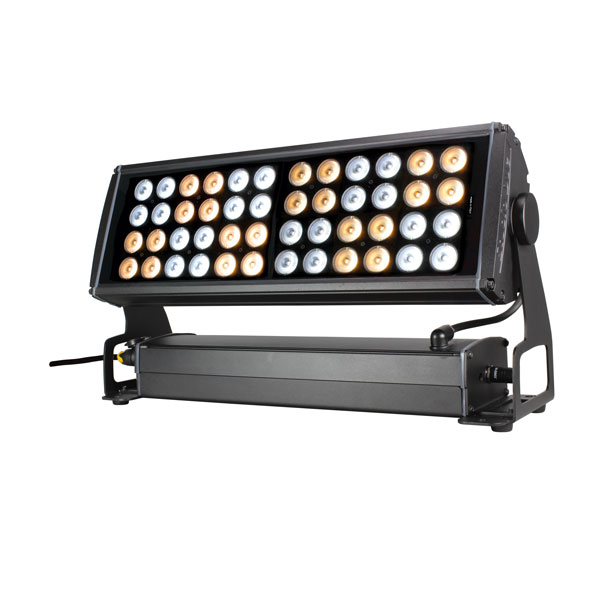

White balance RDM compact and powerful LED lighting fixture. IP 65 protection rating. 12 independent segment control of 4 PIX LEDs, which can be controlled individually offering the user endless creative possibilities.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
CW+WW (5W)
|
Number of LEDs
|
96 (2700K) + 96 (6500K)
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters
|
None
f 20°
f 30°
f 8°x 60°
|
| Connections | |
Connectors and cables
|
Main Power: PowerCon IP65 connector (male-female)
DMX signal: XLR5pin IP65 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
LED display with flip function
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
Flicker-free function
|
Setup
|
RDM/DRS + touch control panel
|
DMX channels
|
50ch - 48ch - 4ch - 2ch
|
| Power supply | |
Input range
|
200 - 240 VAC; 47/63 Hz
|
Power max (W)
|
300
|
Current
|
1,3A@230VAC
|
Inrush current
|
60A@230V
|
| Physical | |
IP protection rating
|
65
67
|
Mounting systems
|
Surface
Truss (optional)
|
Marine Grade treatment
|
None
Yes
|
Sizes l x p x h (mm)
|
622 x 206 x 330 mm
|
Weight (Kgs)
|
16
|
Colour finishing
|
Black RAL 9005 (standard)
|
| Optional/Accessories | |
Accessories - Flight case
|
None
Yes
|
Accessories - Anti glare
|
None
Yes
|
Accessories - Barn door
|
None
Yes
|
Accessories - Handle
|
None
Yes
|
