Product Description

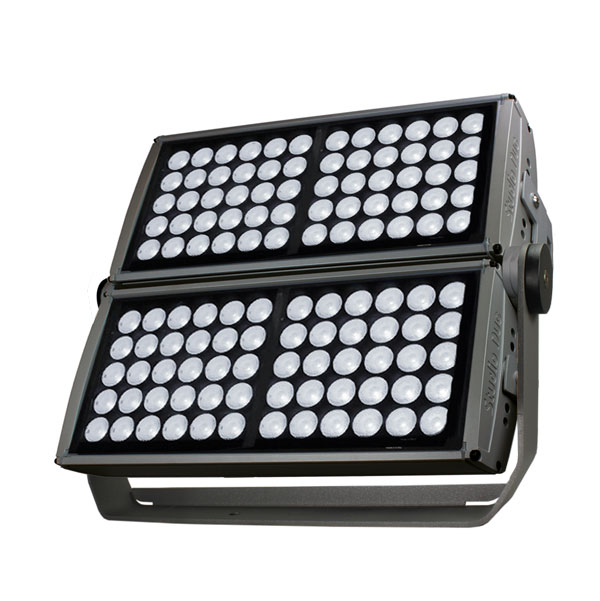

High power Monochromatic fixture. 120 high brightness (5W) white LEDs. IP 67 protection rating. DMX-RDM.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
120 White (5W)
|
Lumen max (lm)
|
64000
|
| Optics | |
Lenses (upper head)
|
4°
8°
15°
15°x30°
25°
40°
60°
|
Lenses (lower head)
|
4°
8°
15°
15°x30°
25°
40°
60°
|
Filters upper head (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 60° x 1° (1° = native lens) vertical
|
Filters lower head (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 60° x 1° (1° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H05 1,5mt
DMX signal: 4pin IP67 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
3ch - 1ch
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power max (W)
|
480
|
Current
|
2,2A@230VAC
|
Power Factor
|
PF>0,95@230VAC
|
Inrush current
|
80A@230V
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
67
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
640 x 120 x 540
|
Weight (Kgs)
|
22
|
| Optional/Accessories | |
Accessories - Anti glare
|
None
Yes
|
Accessories - Barn door
|
None
Yes
|
