Product Description

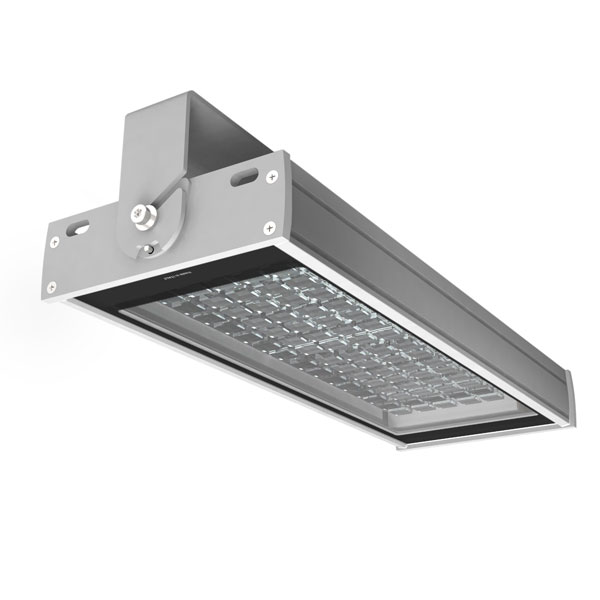

Floodlight (High Bay version) for accurate light distribution and low power consumption (96 mid power White LEDs). Compact and lightweight aluminum housing. Version with DMX-RDM and DALI interface.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2900K
WHITE 4000K
|
Number of LEDs
|
96 Mid Power
|
LED expected lifetime (hrs)
|
90000
|
Lumen max (lm)
|
14000 (@4000K - lens 25°)
|
CRI
|
>80
|
Efficiency
|
170lm/W (light source), 130lm/W (fixture)
|
| Optics | |
Lenses
|
10°
25°
30°x100°
35°x145°
50°
90°
|
| Connections | |
Connectors and cables
|
Main Power: cable 3x0,75mm H07 2mt
DMX/DALI signal : Cable 4 wires 2mt
|
| Control | |
Control type
|
DMX - RDM + DALI
DMX - RDM + DALI + Wireless (on request)
|
| Functions and Setup | |
Functions
|
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
Flicker-free function
|
Setup
|
RDM/DRS
DALI
|
DMX channels
|
3ch - 1ch
|
| Power supply | |
Input range
|
180 - 260 VAC; 47/63 Hz
|
Power max (W)
|
80
|
Current
|
0,34@230VAC
|
Power Factor
|
PF>0,95@230VAC
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
|
Mounting systems
|
Truss (optional)
High Bay
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
180°
|
IP protection rating
|
67
|
IK grade protection
|
08
|
Operating temperature
|
-30°C +50°C
|
Sizes l x p x h (mm)
|
585 x 60 x 245
|
Weight (Kgs)
|
4,5
|
