Product Description

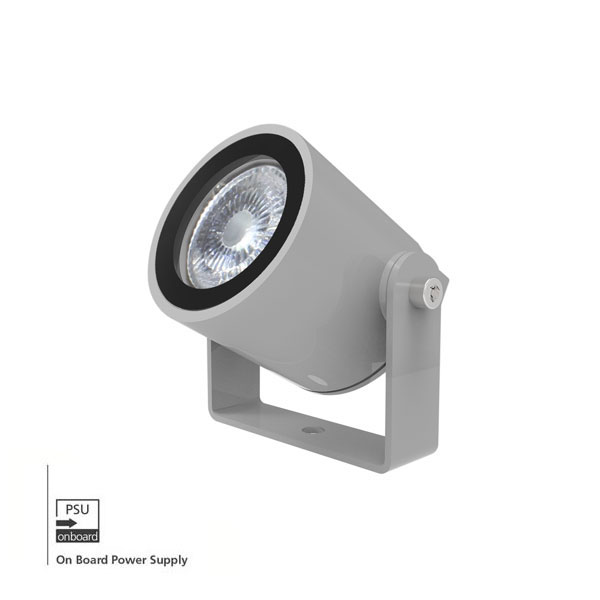

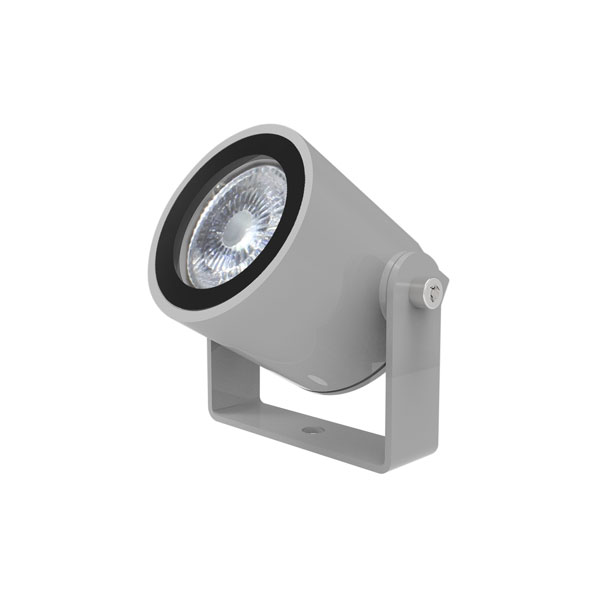

Small IP67 professional 230V Monochromatic LED spotlight with on-board power supply (POB), born to create decorative effects and architectural installations. Versions with IN/OUT bare ends.


Downloads
Technical specification
LED type
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6000K
Number of LEDs
1
LED expected lifetime (hrs)
50000
Lumen MAX
500
CRI
>70 (on request >80, >90)
Lenses
10°
15°
25°
40°
60°
Filters
None
f 100°
Connectors and cables
Power cable 3x0.75mm + DMX signal cable 3x0.3mm
Control type
DMX - RDM
Functions
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
Flicker-free function
Setup
RDM/DRS
DMX channels
3ch - 1ch
Input range
100 - 277 VAC; 47/63 Hz
Power (W)
5
Current
0,25A@230VAC
Inrush current
40A@230V
Materials
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
Colour finishing
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
Marine Grade treatment
None
Yes
Tilt
270°
IP protection rating
67
IK grade protection
08
Operating temperature
-30°C +45°C
Sizes l x p x h (mm)
112x70x70
Weight (Kgs)
0.8
Mounting systems
Surface
