Product Description

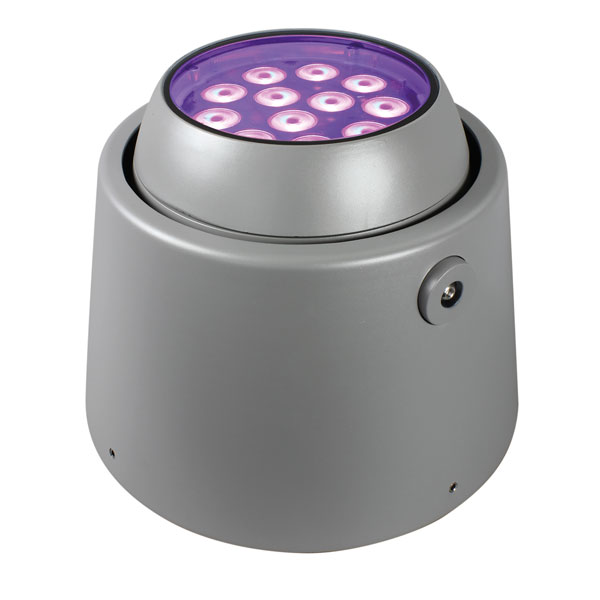

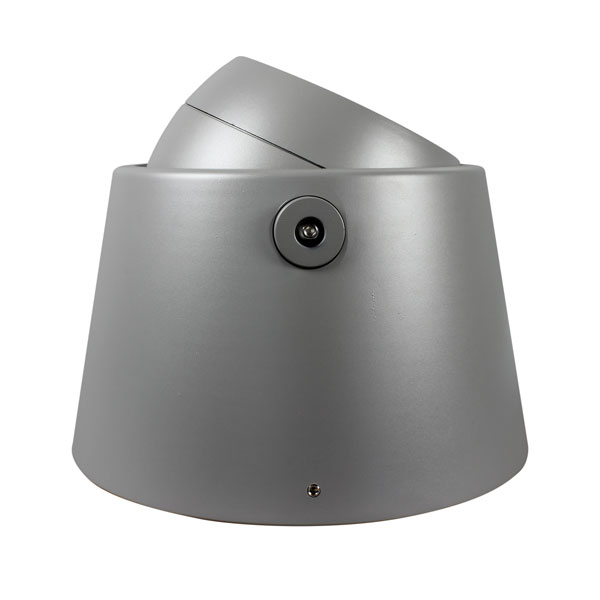

Realized for being used where inground fixtures can not be placed to achieve a similar effect. RGBW version, RDM-DMX protocol. Manual Tilt +/ - 40°
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
12
|
LED expected lifetime (hrs)
|
50000
|
Lumen MAX
|
4150
|
Red lumen (lm)
|
750
|
Green lumen (lm)
|
1800
|
Blu lumen (lm)
|
250
|
White lumen (lm)
|
1600
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H05 1,5mt
DMX signal: cable 0,6mt + 3pin IP67 M14 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
Dedicated DMX channel for white balance from 2900K to 13000K
Dedicated DMX channel for macro
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
10ch - 9ch - 5ch - 4ch
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power (W)
|
60
|
Current
|
0,25A@230VAC
|
Inrush current
|
50A@230V
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
All aluminium alloy
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
-40° / +40°
|
IP protection rating
|
67
|
IK grade protection
|
08
|
Dimensions d x h (mm)
|
325 x 250
|
Weight (Kgs)
|
9
|
Mounting systems
|
Surface
|
Colour finishing
|
Grey RAL 9006 (standard)
|
