Product Description

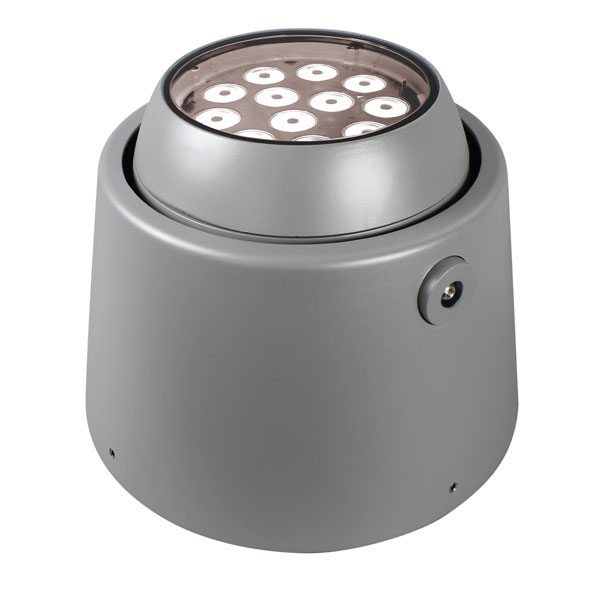

Realized for being used where inground fixtures can not be placed to achieve a similar effect. Monochromatic version, RDM-DMX protocol. Manual tilt +/ - 40°
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
12
|
Lumen max (lm)
|
6000
|
| Optics | |
Lenses
|
4°
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H05 1,5mt
DMX signal: cable 0,6mt + 3pin IP67 M14 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
3ch - 1ch
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power max (W)
|
42
|
Current
|
0,18A@230VAC
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
All aluminium alloy
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
-40° / +40°
|
IP protection rating
|
67
|
IK grade protection
|
08
|
Dimensions d x h (mm)
|
325 x 250
|
Weight (Kgs)
|
9
|
Mounting systems
|
Surface
|
Colour finishing
|
Grey RAL 9006 (standard)
|
