Product Description

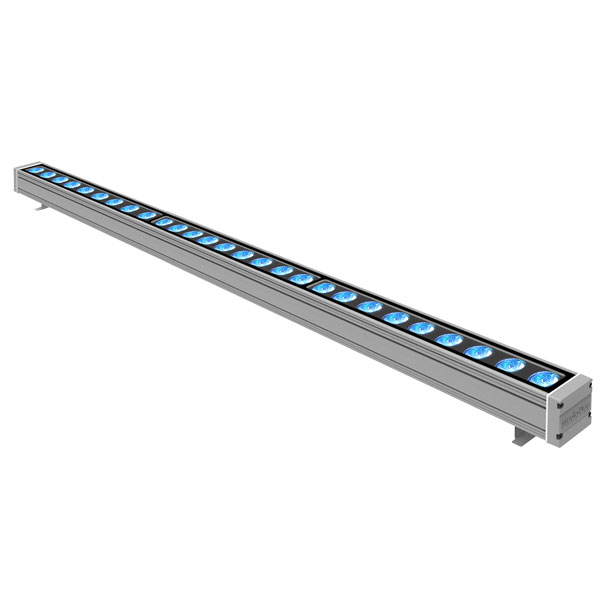

RGBWA compact LED linear bar with 42 mm lenses. IP 67 protection rating. DMX-RDM. Standard 100 cm. Available lenghts on request 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses). On request 150 cm.


Downloads

UM_COMPACTBAR series.pdf

ART.212017 - COMPACTBAR rgbwa 150cm.zip
Technical specification
LED type
RGBW (8W)
Number of LEDs
27
Lumen MAX
12900
Red lumen (lm)
2880
Green lumen (lm)
3780
Blu lumen (lm)
1053
White lumen (lm)
4380
Amber lumen (lm)
1860
Lenses
15°
20°
25°
35°
Filters (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Connectors and cables
Main Power: 3pin IP67 (male-female)
DMX signal: cable 0,6mt + 3pin IP67 M14 connector (male-female)
Control type
DMX - RDM
DMX - RDM + Wireless (on request)
Functions
RDM/DRS
Wireless DMX receiver
Setup
RDM/DRS
DMX channels
10ch - 7ch - 6ch - 5ch
Input range
200 - 240 VAC; 47/63 Hz
Power (W)
120
Mounting systems
Surface
Truss (optional)
Colour finishing
Metal grey 7011 (standard)
RAL 7011
Black RAL 9005 (optional)
RAL 9005
Graphite gray
Graphite
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
Marine Grade treatment
None
Yes
Tilt
160°
IP protection rating
67
Sizes l x p x h (mm)
1530 x 71 x 115
Weight (Kgs)
5,7
