Product Description

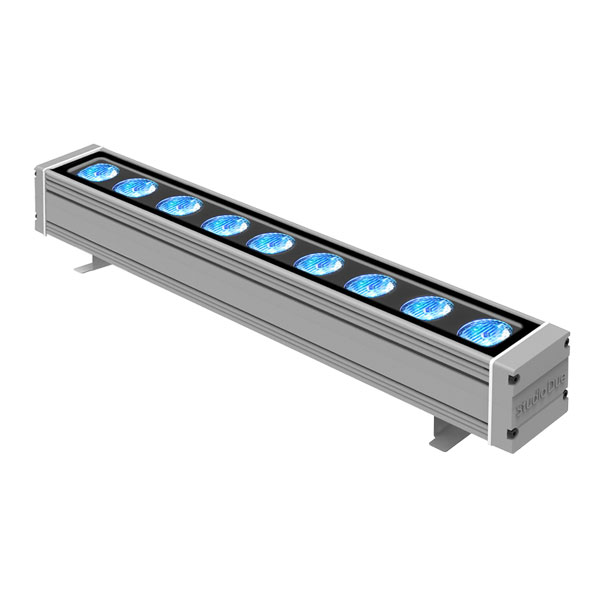

RGBW compact LED linear bar with 38 mm lenses . IP 67 protection rating. DMX - RDM. Standard 100 cm. Available lenghts 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses) .


Downloads

UM_COMPACTBAR series_r2-1123.pdf
Technical specification
LED type
RGBW (8W)
Number of LEDs
9
Lumen MAX
3500
Red lumen (lm)
760
Green lumen (lm)
1350
Blu lumen (lm)
250
White lumen (lm)
1350
Lenses
10°x50°
15°
15°x30°
25°
40°
60°
Filters (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Connectors and cables
Main Power: 3pin IP67 (male-female)
DMX signal: cable 0,6mt + 3pin IP67 M14 connector (male-female)
Connettori e cavi (optional)
Cable: type and length (optional)
Control type
DMX - RDM
DMX - RDM + Wireless (on request)
Functions
RDM/DRS
Wireless DMX receiver
DMX channels
9ch - 6ch - 5ch - 4ch
Input range
Universale 200 - 240 Vac; 47/64 Hz
Power (W)
40
Current
0,19A@230VAC
Power Factor
PF>0,95@230VAC
Mounting systems
Surface
Truss (optional)
Colour finishing
Metal grey 7011 (standard)
RAL 7011
White RAL 9010 (standard)
RAL 9010
Black RAL 9005 (optional)
RAL 9005
Graphite gray
Graphite
Any RAL (optional)
Marine Grade treatment
None
Yes
Tilt
160°
IP protection rating
67
Sizes l x p x h (mm)
540 x 71 x 115
Weight (Kgs)
3,2
