Product Description

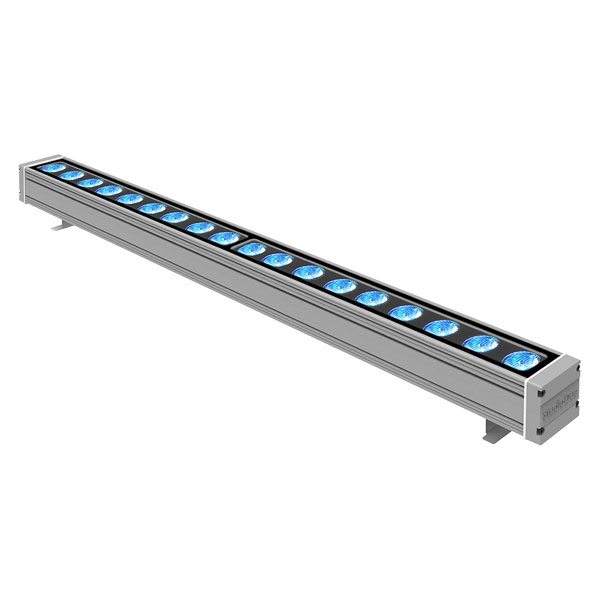

RGBW compact LED linear bar with 38 mm lenses . IP 67 protection rating. DMX - RDM. Standard 100 cm. Available lenghts 50 cm (9 lenses), 100 cm (18 lenses) and 150 cm (27 lenses) .
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW (8W)
|
Number of LEDs
|
18
|
Lumen MAX
|
7000
|
Red lumen (lm)
|
1520
|
Green lumen (lm)
|
2700
|
Blu lumen (lm)
|
500
|
White lumen (lm)
|
2700
|
| Optics | |
Lenses
|
8°
10°x50°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
| Connections | |
Connectors and cables
|
Main Power: 3pin IP67 (male-female)
DMX signal: cable 0,6mt + 3pin IP67 M14 connector (male-female)
|
Connettori e cavi (optional)
|
Cable: type and length (optional)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
RDM/DRS
Wireless DMX receiver
|
DMX channels
|
9ch - 6ch - 5ch - 4ch
|
| Power supply | |
Input range
|
200 - 240 VAC; 47/63 Hz
|
Power (W)
|
85
|
Power Factor
|
PF>0,95@230VAC
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Metal grey 7011 (standard)
RAL 7011
White RAL 9010 (standard)
RAL 9010
Black RAL 9005 (optional)
RAL 9005
Graphite gray
Graphite
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
160°
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
1035 x 71 x 115
|
Weight (Kgs)
|
4,5
|
