Product Description

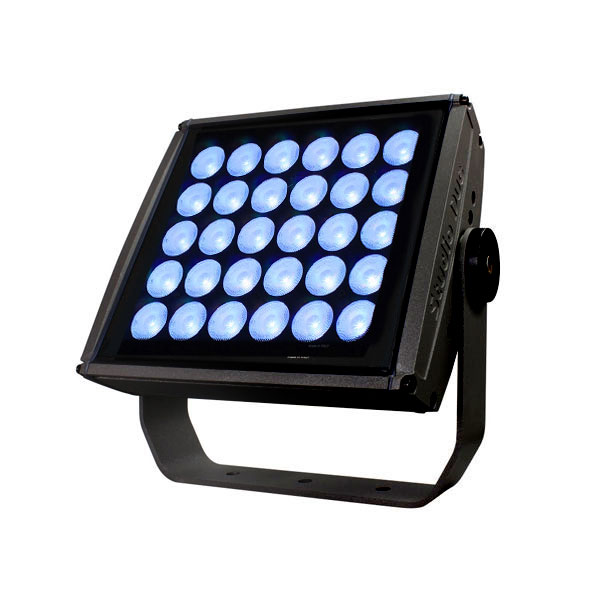

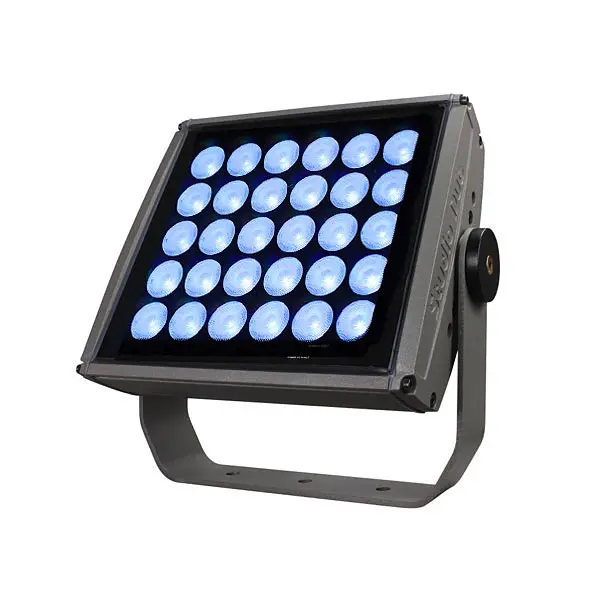

Compact long distance LED Lighting Hi Power RGBW IP67 colorchanger. 30 powerful RGBW LEDs , 38mm lenses
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW (8W)
|
Number of LEDs
|
30
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
11500
|
Red lumen (lm)
|
2500
|
Green lumen (lm)
|
4400
|
Blu lumen (lm)
|
800
|
White lumen (lm)
|
4500
|
| Optics | |
Lenses
|
8°
10°x50°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 1° x 60° (1° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: 3x1,5mm cable
DMX signal: 4pin IP67 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
9ch - 6ch - 5ch - 4ch
|
| Power supply | |
Input range
|
200 - 240 VAC; 47/63 Hz
|
Power max (W)
|
110
|
Current
|
0,45A@230VAC
|
Power Factor
|
PF>0,95@230VAC
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Black RAL 9005 (standard)
RAL 9005
Graphite gray
Graphite
Metal grey 7011 (optional)
RAL 7011
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
356 x 120 x 320
|
Weight (Kgs)
|
7,5
|
| Optional/Accessories | |
Accessories - Flight case
|
None
Yes
|
Accessories - Anti glare
|
None
Yes
|
Accessories - Barn door
|
None
Yes
|
