Product Description

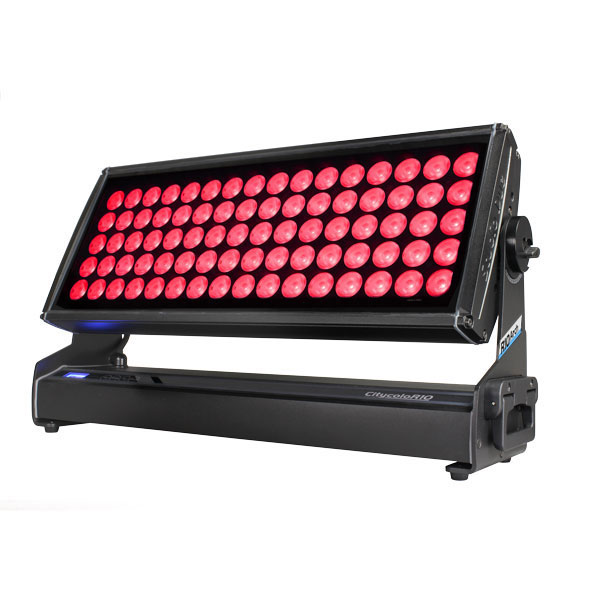

R10. Fanless version of the CityColorR10. Particularly suitable for fixed installations; practically maintenance free. Wide range of optics and filters. Characterized by a modern and essential design, completely made of aluminum alloy. IP67 protection rating.
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
80
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
35500
|
Red lumen (lm)
|
7500
|
Green lumen (lm)
|
14000
|
Blu lumen (lm)
|
2400
|
White lumen (lm)
|
14000
|
| Optics | |
Lenses
|
8°
10°x50°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 1° x 60° (1° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: 3pin IP67 connector (male-female)
DMX signal: 4pin IP67 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
Dedicated DMX channel for macro
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS + touch control panel
|
DMX channels
|
10ch - 9ch - 4ch
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power max (W)
|
540
|
Current
|
2,4A@230VAC
|
Power Factor
|
PF>0,95@230VAC
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Tilt
|
122°
|
IP protection rating
|
67
|
IK grade protection
|
07
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
735 x 185 x 385
|
Weight (Kgs)
|
19
|
| Uncategorized | |
CCR10-AG (art.900001)
|
No
Yes
|
CCR10-BD (art.900101)
|
No
Yes
|
CCR10-FROST (art.900400)
|
No
Yes
|
CLAMP/C (art.900516)
|
No
Yes
|
FFB (art.900517)
|
No
Yes
|
Marine Grade (art.900535)
|
No
Yes
|
SAFETY WIRE/C (art.900523)
|
No
Yes
|
CCR10 kit6 FLR (art.900544)
|
No
Yes
|
