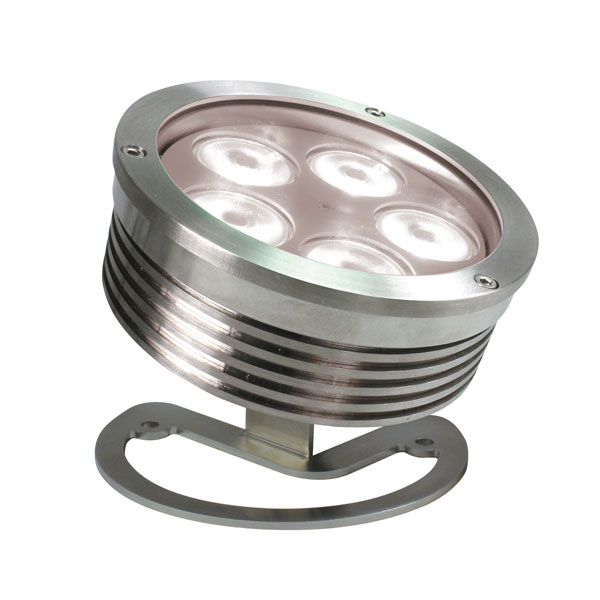

  3. ARIA WL5 24V (it.215360)
GBP Pricelist
Print Datasheet
Product Datasheet
Product Configurator
Compare
Request Information
Wishlist
Downloads
Product Description

20V-48V version with DMX on board and external power supply. IP 67 stainless steel AISI 304 with bracket lighting fixture suitable for outdoor installations. It includes n.5 x 10W Monochromatic LEDs. DMX-RDM-DRS version.

Downloads

UM_Terra-Aria POB_all series.pdf
download
Download
Technical specification
LED type
WHITE 2700K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
Number of LEDs
10
LED expected lifetime (hrs)
50000
Lumen MAX
2500
Lenses
8°
15°
15°x30°
25°
40°
60°
Filters (optional)
None
Filter f17° tilt
Filter f34° tilt
Filter f65° frost
Connectors and cables
Combo-cable Main Power + DMX signal (2x1mm+3x0,25mm - 1,5mt)
Connettori e cavi (optional)
Cable: type and length (optional)
Control type
External Power Supply
DMX - RDM
DMX - RDM + DALI
Functions
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
Flicker-free function
Setup
RDM/DRS
DMX channels
3ch - 1ch
Input range
CV 20 - 48 VDC
Power (W)
16
IP protection rating
67
68 optional
Materials
Ultra clear 10mm tempered glass
All in stainless steel AISI304
Mounting systems
Surface
Truss (optional)
Dimensions d x h (mm)
134 x 115
Weight (Kgs)
2,7
Case
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
FILTER-SING 105-W (art.900419)
No
Yes
FILTER-SING 105 (art.900420)
No
Yes
FILTER-DOUB 105 (art.900421)
No
Yes
AR-WB long bracket (art.900538)
No
Yes
PS 10 TERRA-ARIA (art. 550170)
No
Yes
PS 4 TERRA-ARIA (art.551170)
No
Yes
PS 1 TERRA-ARIA (art.552170)
No
Yes
Product Configurations
  • LED type
  • Number of LEDs
  • LED expected lifetime (hrs)
  • Lumen MAX
  • Lenses
  • Filters (optional)
  • Connectors and cables
  • Connettori e cavi (optional)
  • Control type
  • Functions
  • Setup
  • DMX channels
  • Input range
  • Power (W)
  • IP protection rating
  • Dimensions d x h (mm)
  • Weight (Kgs)
  • Materials
  • Mounting systems
  • Product Category
  • Case
  • FILTER-SING 105-W (art.900419)
  • FILTER-SING 105 (art.900420)
  • FILTER-DOUB 105 (art.900421)
  • AR-WB long bracket (art.900538)
  • PS 10 TERRA-ARIA (art. 550170)
  • PS 4 TERRA-ARIA (art.551170)
  • PS 1 TERRA-ARIA (art.552170)
