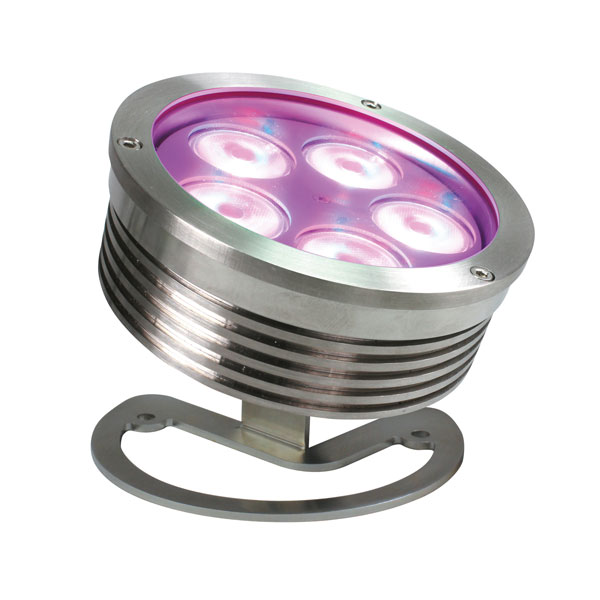

  3. ARIA L5 24V RGBW RDM (it.215160)
GBP Pricelist
Print Datasheet
Product Datasheet
Product Configurator
Compare
Request Information
Wishlist
Downloads
Product Description

RGBW lighting fixture version 20-48V with DMX on board and external power supply, IP 67, AISI 304 stainless steel with bracket. Suitable for outdoor installations. Features no.5 x 10W RGBW LEDs.

Downloads

UM_Terra-Aria POB_all series.pdf
download
Download
Technical specification
LED type
RGBW5050MULTICHIP
Number of LEDs
5
LED expected lifetime (hrs)
50000
50000
Lumen MAX
1815
Red lumen (lm)
330
Green lumen (lm)
770
Blu lumen (lm)
110
White lumen (lm)
715
Lenses
8°
15°
15°x30°
25°
40°
60°
Filters (optional)
None
Filter f17° tilt
Filter f34° tilt
Filter f65° frost
Connectors and cables
Combo-cable Main Power + DMX signal (2x1mm+3x0,25mm - 1,5mt)
Connettori e cavi (optional)
Cable: type and length (optional)
Control type
External Power Supply
DMX - RDM
Functions
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
CYM simulation
Flicker-free function
Setup
RDM/DRS
DMX channels
9ch - 5ch - 4ch
Input range
CV 20 - 48 VDC
Power (W)
18
IP protection rating
67
68 optional
Materials
Ultra clear 10mm tempered glass
All in stainless steel AISI304
Mounting systems
Surface
Truss (optional)
Dimensions d x h (mm)
134 x 115
Weight (Kgs)
2,5
Case
AISI 304 (standard)
AISI 316 (optional)
Aluminium (optional)
Aluminium - Marine Grade (optional)
FILTER-SING 105 (art.900420)
No
Yes
FILTER-SING 105-W (art.900419)
No
Yes
FILTER-DOUB 105 (art.900421)
No
Yes
AR-WB long bracket (art.900538)
No
Yes
PS 10 TERRA-ARIA (art. 550170)
No
Yes
PS 4 TERRA-ARIA (art.551170)
No
Yes
PS 1 TERRA-ARIA (art.552170)
No
Yes
