Product Description

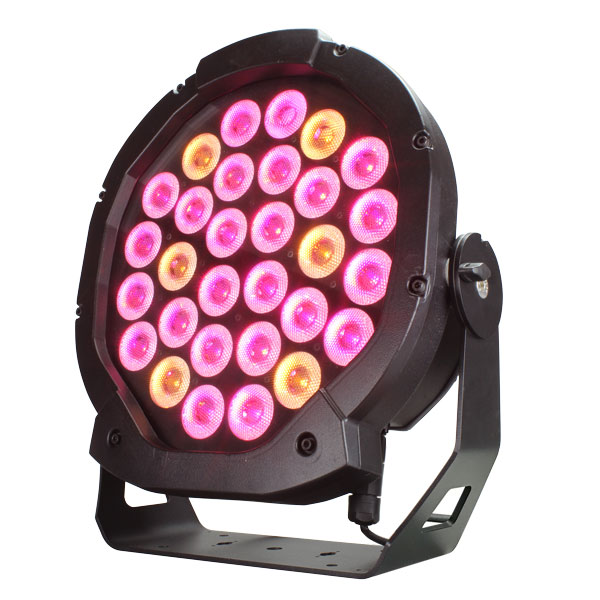

Hi Power wash LED light colorchanger. 24 RGBW LEDs + 6 Amber LEDs , with touch control panel on the rear. IP 67 protection rating.
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBWA
|
Number of LEDs
|
30
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
14900
|
Red lumen (lm)
|
2700
|
Green lumen (lm)
|
5150
|
Blu lumen (lm)
|
820
|
White lumen (lm)
|
5150
|
Amber lumen (lm)
|
1900
|
| Optics | |
Lenses
|
6°
10°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Elliptical projection filter 1° x 60° (1° = native lens) vertical
|
| Connections | |
Connectors and cables
|
Main Power: 3pin IP67 connector (male-female)
DMX signal: 4pin IP67 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
LED display with flip function
Dedicated DMX channel for white balance from 2000K to 10000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS + touch control panel
|
DMX channels
|
10ch - 7ch - 6ch - 5ch
|
| Power supply | |
Input range
|
200 - 240 VAC; 47/63 Hz
|
Power max (W)
|
210
|
Current
|
0,9A@230VAC
|
Inrush current
|
65A@230VAC
|
Daisy chain Power+DMX (max n. fixture)
|
6
|
| Physical | |
Materials
|
Ultra clear 5mm tempered glass
PMMA lenses
All aluminium alloy
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Black RAL 9005 (standard)
RAL 9005
Grey RAL 9006 (optional)
RAL 9006
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Tilt
|
135°
|
IP protection rating
|
67
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
400 x 125 x 420
|
Weight (Kgs)
|
11,5
|
| Uncategorized | |
AL400-AG (art.900012)
|
No
Yes
|
AL400-SN (art.900201)
|
No
Yes
|
AL400-CL (art.900300)
|
No
Yes
|
CLAMP/C (art.900516)
|
No
Yes
|
FFB (art.900517)
|
No
Yes
|
Marine Grade (art.900535)
|
No
Yes
|
SAFETY WIRE/C (art.900523)
|
No
Yes
|
