Product Description

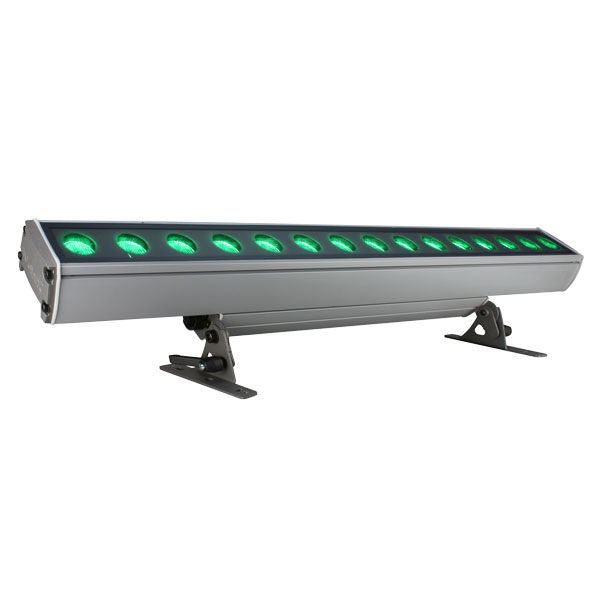

Powerful RGBW LED linear bar 60 cm long (on request). 38 mm lenses. IP 67 protection rating. Standard 90 cm.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW5050MULTICHIP
|
Number of LEDs
|
10
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
6450
|
Red lumen (lm)
|
1350
|
Green lumen (lm)
|
2450
|
Blu lumen (lm)
|
420
|
White lumen (lm)
|
2650
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
| Connections | |
Connectors and cables
|
Main Power: 3pin IP67 (male-female)
DMX signal: 4pin IP67 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
LED display with flip function
Dedicated DMX channel for white balance from 2900K to 13000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS + touch control panel
|
DMX channels
|
9ch - 5ch - 4ch
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power max (W)
|
75
|
Current
|
0,35A@230VAC
|
Inrush current
|
60A@230V
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
67
|
Operating temperature
|
-30°C +45°C
|
Sizes l x p x h (mm)
|
632 x 163 x 160
|
Weight (Kgs)
|
4,5
|
