Product Description

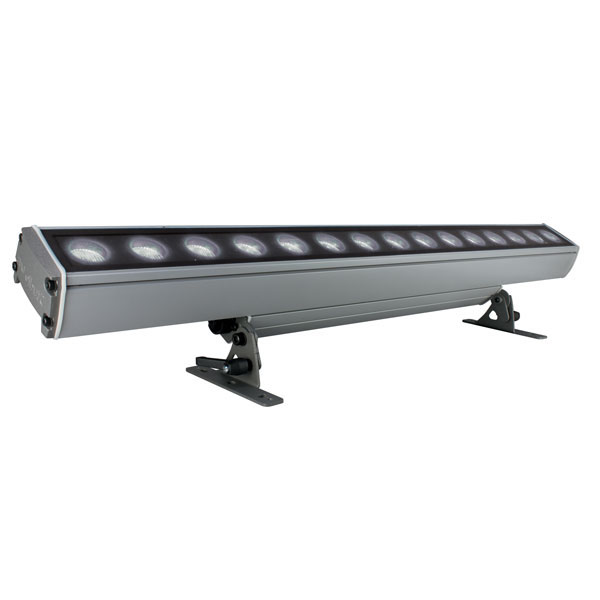

Monochromatic LED linear bar 90 cm (standard). 30 Monochromatic LEDs. 38 mm lenses. Ip 67 protection rating. PLUG-IN version.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
30
|
Lumen MAX
|
12000
|
| Optics | |
Lenses
|
8°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
| Control | |
Control type
|
Plug-in
|
| Functions and Setup | |
Functions
|
N/A
|
| Power supply | |
Input range
|
100 - 240 VAC; 47/63 Hz
|
Power (W)
|
100
|
| Physical | |
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
67
|
Sizes l x p x h (mm)
|
925 x 163 x 160
|
Weight (Kgs)
|
6
|
