Product Description

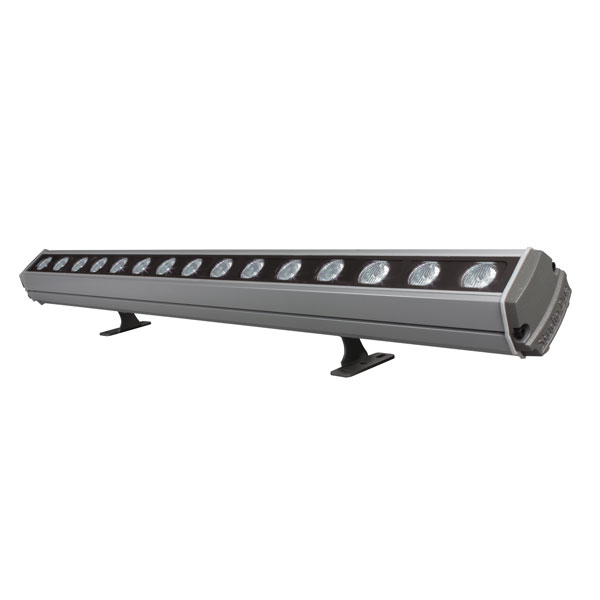

90 cm long linear bar with n.15 Monochromatic LEDs. Made from a sturdy aluminum profile. IP 67 degree of protection. Available in 4 measures: 60, 90, 120 and 150 cm. Standard 90 cm. RDM - DMX protocol. Daisy chain (power supply and DMX). Configuration via DRS Setup.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
|
Number of LEDs
|
15
|
Lumen max (lm)
|
7500
|
| Optics | |
Lenses
|
4°
8°
10°x50°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H05 0,6mt + IP67 3pin M19 connector (male-female)
DMX signal: cable 0,6mt + 3pin IP67 M14 connector (male-female)
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
DMX - RDM + DALI
DMX - RDM + DALI + Wireless (on request)
DALI DT6
|
| Functions and Setup | |
Functions
|
Dedicated DMX channel for white balance from 2000K to 10000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
3ch - 1ch
|
| Power supply | |
Input range
|
180 - 260 VAC; 47/63 Hz
|
Power max (W)
|
55
|
Current
|
0,23A@230VAC
|
| Physical | |
Materials
|
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
|
Mounting systems
|
Surface
Truss (optional)
|
Colour finishing
|
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
|
Marine Grade treatment
|
None
Yes
|
IP protection rating
|
67
|
IK grade protection
|
07
|
Operating temperature
|
-20°C +40*C
|
Sizes l x p x h (mm)
|
944 x 93 x 115 mm
|
Weight (Kgs)
|
3,8
|
