Product Description

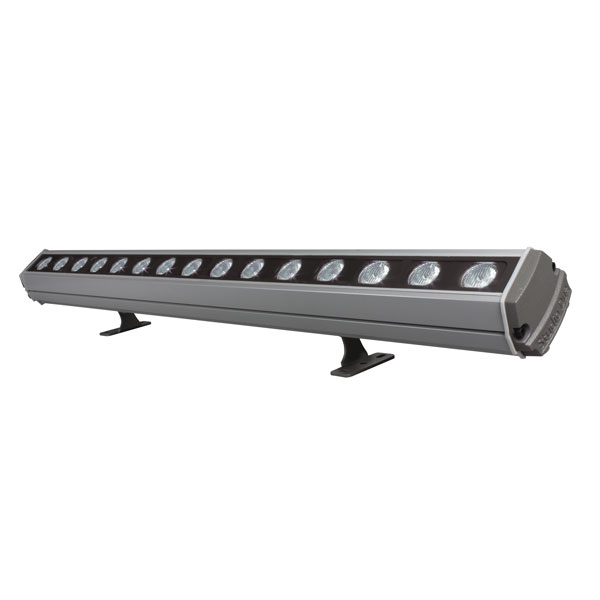

60 cm long linear bar with n.10 Monochromatic LEDs. Made from a sturdy aluminum profile. IP 67 degree of protection. Available in 4 measures: 60, 90, 120 and 150 cm. Standard 90 cm. RDM - DMX protocol. Daisy chain (power supply and DMX). Configuration via DRS Setup.


Downloads
Technical specification
LED type
WHITE 2700K
WHITE 3000K
WHITE 4000K
WHITE 6500K
RED
GREEN
BLUE
AMBER
Number of LEDs
10
Lumen MAX
5000
Lenses
10°x50°
15°
15°x30°
25°
40°
60°
Filters (optional)
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
Connectors and cables
Main Power: 3x1mm cable H05 0,6mt + IP67 3pin M19 connector (male-female)
DMX signal: cable 0,6mt + 3pin IP67 M14 connector (male-female)
Control type
DMX - RDM
DMX - RDM + Wireless (on request)
DMX - RDM + DALI
DMX - RDM + DALI + Wireless (on request)
DALI DT6
Functions
Dedicated DMX channel for white balance from 2000K to 10000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Halogen simulation
Flicker-free function
Setup
RDM/DRS
DMX channels
3ch - 1ch
Input range
180 - 260 VAC; 47/63 Hz
Power (W)
36
Current
0,15A@230VAC
Materials
Ultra clear 4mm tempered glass
PMMA lenses
Aluminium alloy housing
Polyester powder coated
Mounting systems
Surface
Truss (optional)
Colour finishing
Grey RAL 9006 (standard)
RAL 9006
Black RAL 9005 (optional)
RAL 9005
White RAL 9010 (optional)
RAL 9010
Any RAL (optional)
Marine Grade treatment
None
Yes
IP protection rating
67
IK grade protection
07
Operating temperature
-20°C +40*C
Sizes l x p x h (mm)
664x93x115
Weight (Kgs)
xxx
