Product Description

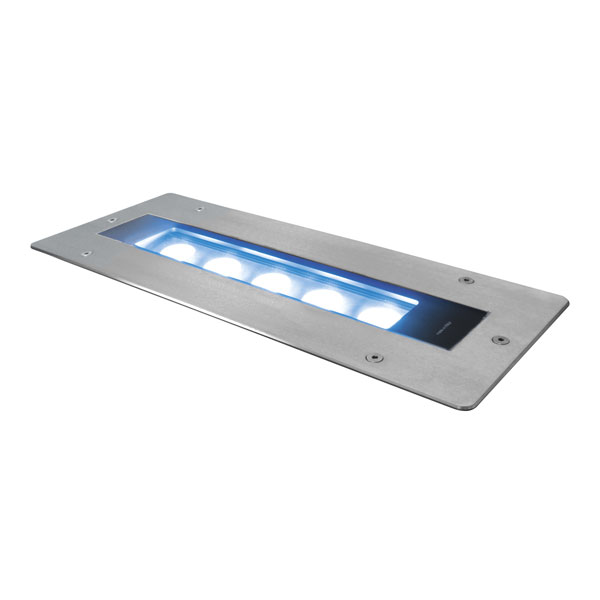

IP 67 RGBW inground LED linear bar 30 cm long (on request). Profile in aluminium , sturdy 12 mm thick tempered glass, 3 mm thick satin stainless steel AISI 304 flange. Standard 90 cm. Possibility of manual adjusting the lighting angle at: 0°, 3°, 6°.
Downloads
Technical specification
| Lighting source | |
|---|---|
LED type
|
RGBW TX-5050-10W
|
Number of LEDs
|
5
|
LED expected lifetime (hrs)
|
50000
|
Lumen max (lm)
|
2300
|
Red lumen (lm)
|
500
|
Green lumen (lm)
|
900
|
Blu lumen (lm)
|
140
|
White lumen (lm)
|
900
|
| Optics | |
Lenses
|
8°
10°x50°
15°
15°x30°
25°
40°
60°
|
Filters (optional)
|
None
Elliptical projection filter 60° x 1° (1° = native lens) horizontal
|
| Connections | |
Connectors and cables
|
Main Power: 3x1mm cable H07 1mt
DMX signal: 1mt shielded cable bare ends
|
| Control | |
Control type
|
DMX - RDM
DMX - RDM + Wireless (on request)
|
| Functions and Setup | |
Functions
|
RDM/DRS
Dedicated DMX channel for white balance from 2000K to 10000K
DMX or Auto Mode with Master-Slave function
Intelligent temperature control
Continuous dimming 0-100%
Smooth dimming function
Ultrafast strobe effect
Halogen simulation
CYM simulation
Flicker-free function
|
Setup
|
RDM/DRS
|
DMX channels
|
9ch - 6ch - 5ch - 4ch
|
| Power supply | |
Input range
|
100 - 277 VAC; 47/63 Hz
|
Power max (W)
|
30
|
Current
|
0,13A@230VAC
|
| Physical | |
Materials
|
Ultra clear 12mm tempered glass
PMMA lenses
Aluminium alloy housing
Stainless steel AISI 304 flange
|
Marine Grade treatment
|
None
Yes
|
Tilt
|
Manual 0° 3° 6°
|
IP protection rating
|
67
|
IK grade protection
|
10
|
Operating temperature
|
-20°C +40*C
|
Sizes l x p x h (mm)
|
450 x 182 x 173
|
Weight (Kgs)
|
xxx
|
Mounting systems
|
Inground
|
